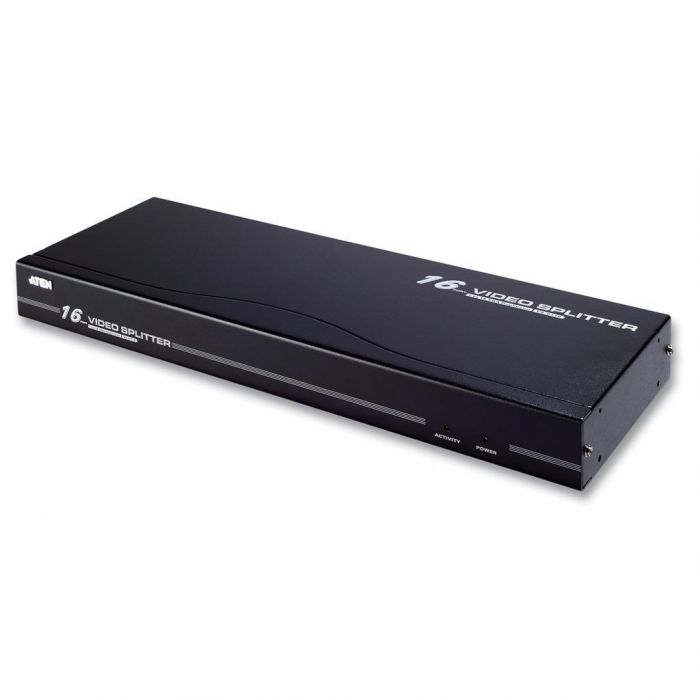

The VS0116 16 Port Video Splitter with Audio duplicates and enhances the video and audio signals from an input source (i.e. a computer) and routes them to up to 16 output devices (monitors, projectors, etc.)Furthermore, it can be cascaded to additional ATEN video splitters to support hundreds of monitors.
One video input to 16 video outputs. Cascadable to 3 levels -provides up to 8/64/512 and thousands of video signals. Audio enabled. Supports up to 250MHz; bandwidth. Long distance transmission - up to 65 m (210'). High video resolution - 1920 x 1440. DDC, DDC2, DDC2B Compatible (Port 1 only). All metal casing. Designed for enterprise use - 1U in size. Supports VGA, XGA, SVGA, UXGA and multisync monitors. OS Support: Windows 2000, Windows XP, Linux, Mac and Sun

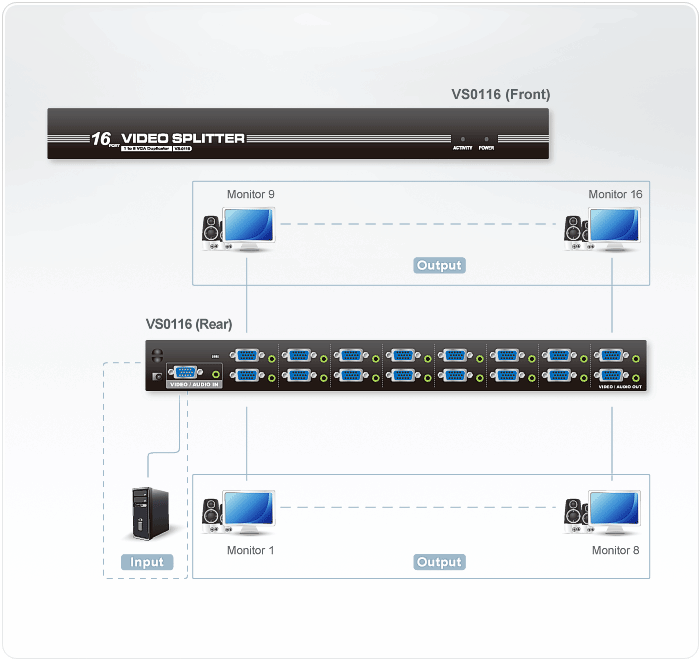

Diagram
Content
• 1x 16-Port Video Splitter with Audio
• 1x VGA/Audio Cable (1.8m)
• 1x 0AD6-1605-09EG Power Adapter
• 1x Rack Mount Kit
• 1x User Instructions
Specifications
Display Connections
16
Connectors
Video In
1 x HDB-15 Male (Blue)
Audio In
1 x Mini Stereo Jack Female (Green)
Video Out
16 x HDB-15 Female (Blue)
Audio Out
16 x Mini Stereo Jack Female (Green)
Power
1 x DC Jack
Switches
Video Gain
1 x Slide
LEDs
Power
1(Blue)
Activity
1(Green)
Video Bandwidth
250MHz
Video
1920 x 1440 @ 60Hz
Sync Range
Sync Positive / Negative
Signal Range
Up to 65m (210')
Power Consumption
DC5.3V, 3.3W (Max)
Environment
Operating Temp.
0-50°C
Storage Temp.
-20-60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
2.80 kg
Dimensions (L x W x H)
43.30 x 16.00 x 4.40 cm (19"/1U)
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
