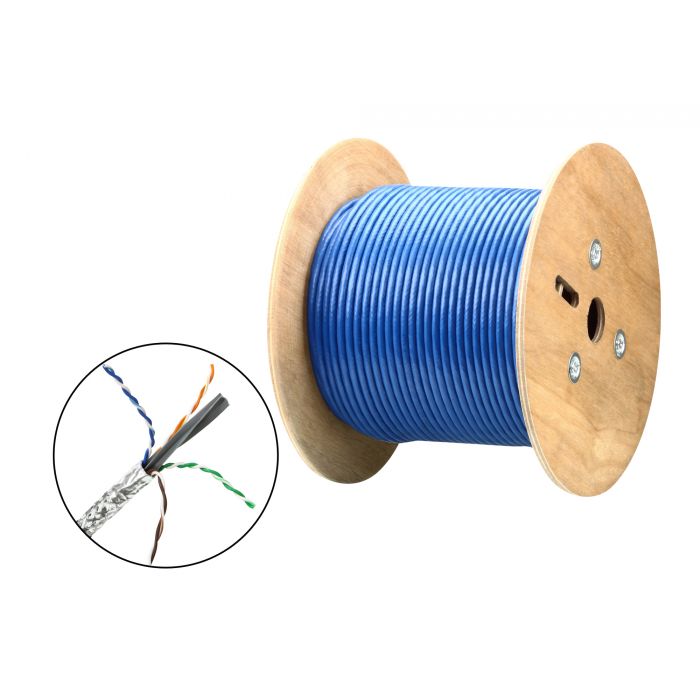

De 2L-2910 is een gedraaide paar kabel, ontworpen voor optimale signaaloverdracht bij resoluties tot 4K, inclusief digitale en analoge gegevens, geluids- en videotoepassingen. De kabel ondersteunt een sweepfrequentie tot 400 MHz en is gecertificeerd om te voldoen aan de prestatie-eisen van de HDBaseT Alliance.
| Cable Type | Cat 6 SF/UTP |
| Conductor | |
| Size | 23 AWG |
| Construction | Solid Bare copper |
| Number of Pairs | 4 |
| Shield | |
| Material | AI Mylar tape |
| Coverage | 100% Coverage and mylar side facing out |
| Insulation | |
| Material | Polyolefin |
| Color codes | Blue & White/Blue stripe 1.08 ± 0.02 mm Orange & White/Orange stripe 1.05 ± 0.02 mm Green & White/Green stripe 1.08 ± 0.02 mm Brown & White/Brown stripe 1.05 ± 0.02 mm |
| Filler | Polylefin (PO) |
| Braid | Tinned Copper |
| Jacketed | |
| Material | Polyvinyl chloride (PVC) |
| Average Thickness | 0.5 mm+-0.05mm |
| Diameter | 7.4 ± 0.20 mm |
| Color | Blue |
| Electrical | |
| Dc Resistance Unbalance | ≤ 5% |
| Conductor Resistance | ≤ 9.38 Ω/100m |
| Dielectric strength | 1.5 KV ac for 2 s |
| Insulation resistance | ≥ 5000 MΩ•km |
| Mutual Capacitance | ≤ 5.6 nF/100m |
| Pair-To-Ground Capacitance Unbalance | ≤ 330 pF/100m |
| Ac Leakage Current Througt Overall Jacket | ≤ 10mA (1.5KV AC) |
| Spark Test | 2.5 KV DC |
| Minimum bending radius | ≥4 times of overall diameter |
| Delay Skew | 45.00 Max.ns/100m |
| Environmental | |
| Temperature (Operating / Storage) | -20°C to 60°C |
| Physical Properties | |
| Weight | 17.57 kg ( 38.7 lb ) |
| Cable Length | 305m / 1000ft |
