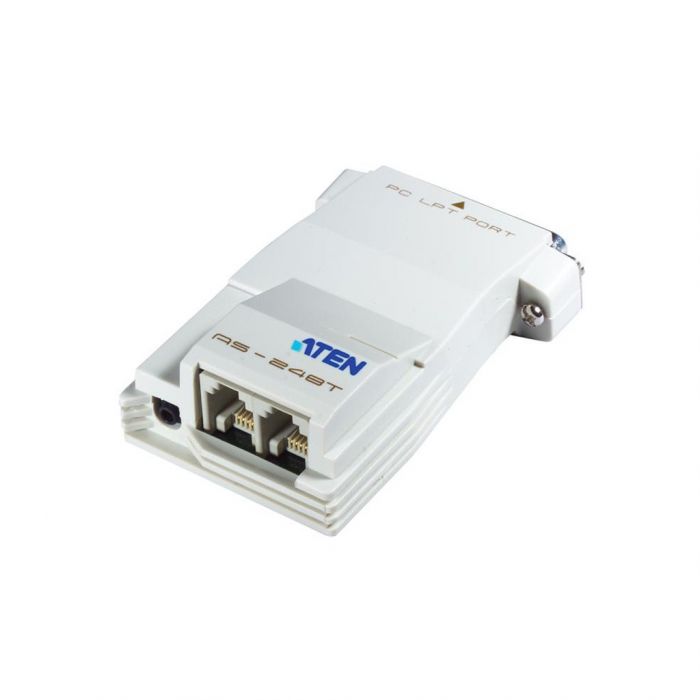

Aten AS248T Printer Network

€ 29,95 € 24,75
Levertijd: 3-5 werkdagen
At Print Side; Input - 2 x 6P4C Jacks, Output - 1 x Centronics C-36 Male

Omschrijving


 AS248 allows users to share 8 printers via a maximum of 64 computers through switching (24 by default). It is a helpful device to SMEs.
Voor meer informatie.

Eigenschappen


At least 24 PCs can share 8 Centronics printers with the AS248 network by means of 4-wire phone lines.
Simultaneous printing capability.
Works in bus/star/tree topologies.
Data Transfer rate: 22 Kbytes per second.
Cable distance of up to 366m (1200').
Easy Installation.
Selects printers by software code operation.
No external power required.

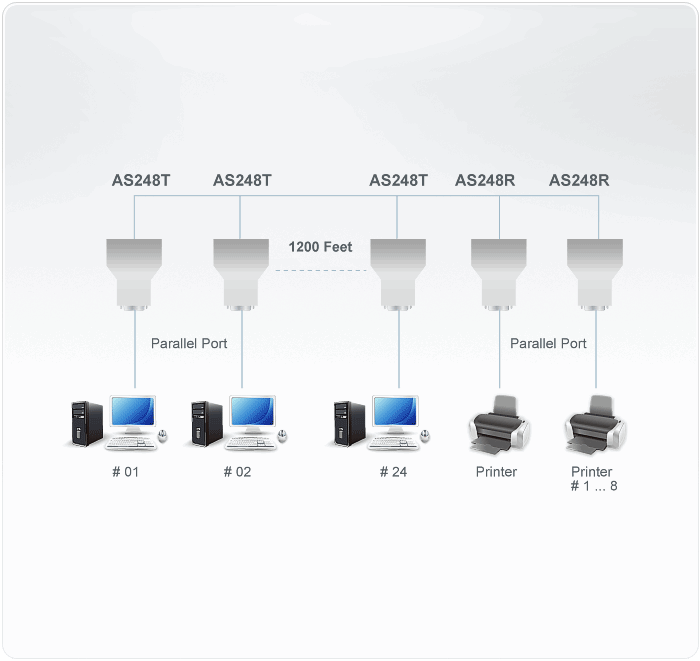

Diagram

Specifications


Function AS-248T AS-248R
Connectors Input 1 x DB-25 Male 2 x 6P4C Jacks
Output 2 x 6P4C Jacks 1 x Centronics
C-36 Male
Power Consumption DC9V, 0.02W
Data Transfer Rate 22 Kbytes/ Sec. (Max.)
I/O Arbitration First Come First Served
Printer Selection Auto/Manual
Auto Form Feed Selection Enable / Disable
Timeout Selection 5, 10, 25, 60 Second
Environment Operating Temp. 0 ~50?C
Storage Temp. -20 ~ 60?C
Humidity 0~80% RH, Non-condensing
Physical Properties Housing Plastic
Weight 47 g 50 g
Dimension
( L x W x H )
8.20 x 5.40 x 2.60 cm 7.60 x 5.30 x 2.10 cm
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
