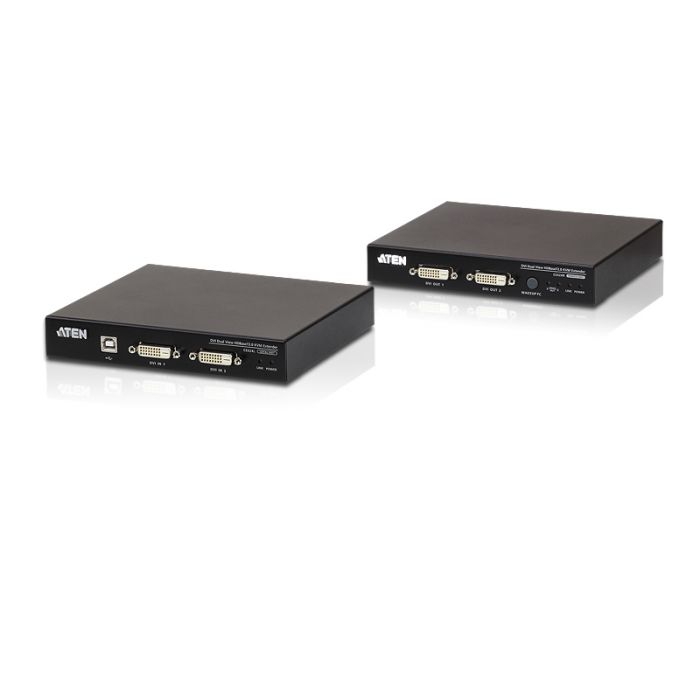

De ATEN CE624 USB DVI Dubbelvoudige Weergave HDBaseT™ 2.0 KVM Verlenger integreert de nieuwste HDBaseT™ 2.0 technologieën om de meest betrouwbare transmissie van video, geluid, USB en RS-232-signalen op de markt te bieden De CE624 levert hoogwaardige DVI Dubbelvoudige Weergave-video, PCM 2-kanaals digitaal geluid, USB 2.0- en RS-232-signalen tot op 100 meter van de broncomputer met één enkele Cat6/6a-kabel. Met een eenvoudige kabelinstallatie die verschillende signalen ondersteunt, is de CE624 ideaal voor toepassingen waar gemakkelijke toegang op afstand vereist is –, in plaatsen zoals transportcontrolecentra, medische faciliteiten, industriële magazijnen en uitgebreide werkstations.
| Function | CE624L | CE624R |
| Connectors | ||
| KVM Ports | 2 x DVI-D Female (White) 1 x USB Type B Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) | N/A |
| Console Ports | N/A | 2 x DVI-D Female (White) 3 x USB Type A Female (White) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack with locking | 1 x DC Jack with locking |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| LEDs | ||
| Power | 1 (Green) | 1 (Green) |
| Link | 1 (Orange) | 1 (Orange) |
| Video Output | N/A | 2 (Orange) |
| Switches | ||
| Long Reach Mode Switch | 1 x Slide Switch | 1 x Slide Switch |
| Firmware Upgrade | 1 x Slide Switch | 1 x Slide Switch |
| Pushbuttons | ||
| Wakeup button | N/A | 1 x Push button |
| Video | Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (cat 6/6a) 1080P@100m | Up to 1600x1200 & 1920x1200@90m (Cat 5e) / 100m (cat 6/6a) 1080P@100m |
| Power Consumption | DC5V:4.93W:23BTU DC5V:7.2W:49BTU | DC5V:4.93W:23BTU DC5V:7.2W:49BTU |
| Environmental | ||
| Operating Temperature | 0‐40°C | 0‐40°C |
| Storage Temperature | -20‐60°C | -20‐60°C |
| Humidity | 0‐80% RH, Non-condensing | 0‐80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.81 kg ( 1.78 lb ) | 0.80 kg ( 1.76 lb ) |
| Dimensions (L x W x H) | 17.42 x 15.94 x 2.88 cm (6.86 x 6.28 x 1.13 in.) | 17.42 x 15.94 x 2.88 cm (6.86 x 6.28 x 1.13 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
