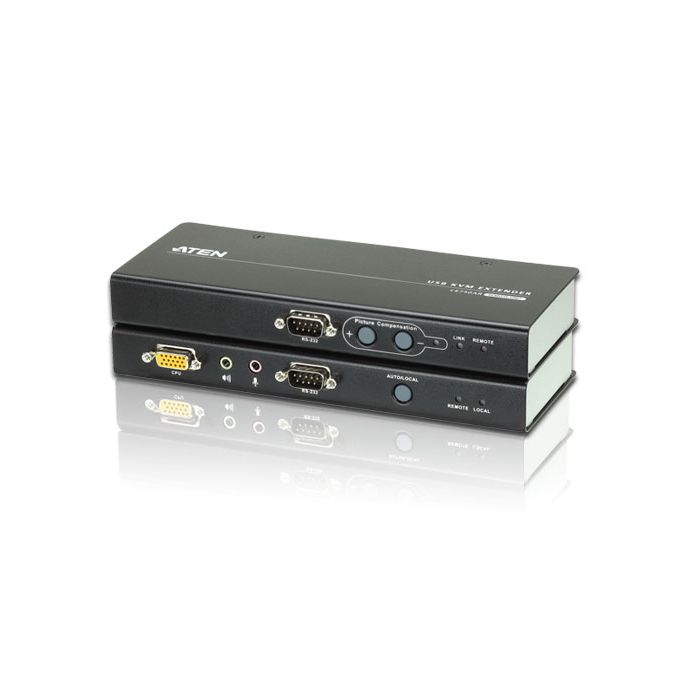

De CE750A is een USB-gebaseerde KVM Verlenger met automatische signaalcompensatie en RS-232 seriële functie die toegang biedt tot een computersysteem vanaf een USB-console op afstand (USB-toetsenbord, beeldscherm en USB-muis).
| Function | CE750AL | CE750AR |
| Connectors | ||
| Console Ports | 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) | 2 x USB Type A Female (White) 1 x HDB-15 Female (Blue) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) |
| KVM Ports | 1 x SPHD-15 Female (Yellow) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) | N/A |
| RS-232 | 1 x DB-9 Female (Black) | 1 x DB-9 Male (Black) |
| Power | 1 x DC Jack (Black) | 1 x DC Jack (Black) |
| Unit To Unit | 1 x RJ-45 Female (Black) | 1 x RJ-45 Female (Black) |
| LEDs | ||
| Remote | 1 (Green) | 1 (Green) |
| Link | N/A | 1 (Green) |
| Local | 1 (Green) | N/A |
| Picture Compensation | N/A | 1 (Orange) |
| Pushbuttons | ||
| Operating Mode Selection | 1 x Pushbutton | N/A |
| Picture Compensation | N/A | 2 x Pushbuttons |
| Emulation | ||
| Keyboard / Mouse | USB | USB |
| Video | 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m | 1920x1200@60Hz at 30m; 1600x1200@60Hz at 150m; 1280x1024@60Hz at 200m |
| Power Consumption | DC5.3V:2.44W:16BTU DC5.3V:3.27W:20BTU | DC5.3V:2.44W:16BTU DC5.3V:3.27W:20BTU |
| Environmental | ||
| Operating Temperature | 0-50?C | 0-50?C |
| Storage Temperature | -20-60?C | -20-60?C |
| Humidity | 0-80% RH, Non-condensing | 0-80% RH, Non-condensing |
| Physical Properties | ||
| Housing | Metal | Metal |
| Weight | 0.47 kg ( 1.04 lb ) | 0.47 kg ( 1.04 lb ) |
| Dimensions (L x W x H) | 20.20 x 8.51 x 2.50 cm (7.95 x 3.35 x 0.98 in.) | 20.20 x 8.63 x 2.50 cm (7.95 x 3.4 x 0.98 in.) |
