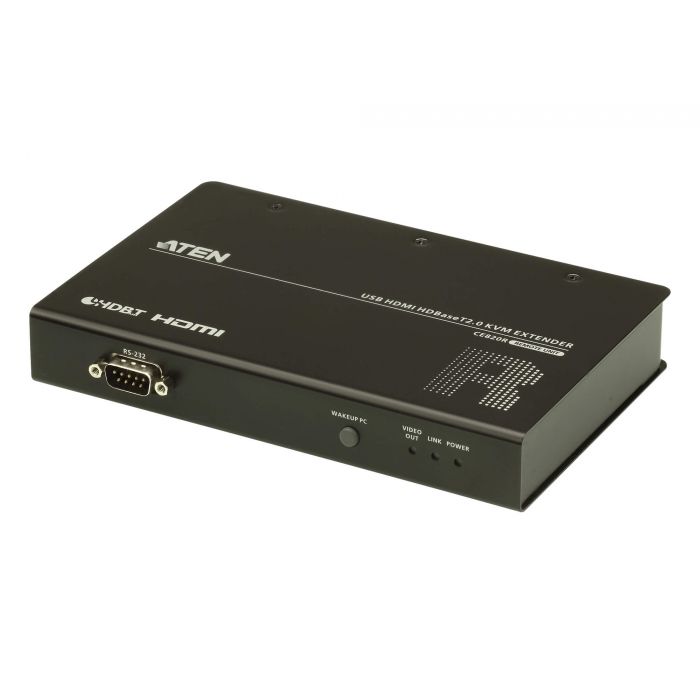

ATEN CE820R USB HDMI HDBaseT2.0 KVM Extender/Remote

€ 514,01 € 424,80
USB HDMI HDBaseT™ 2.0 KVM Extender/Remote

Omschrijving

  • Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
  • HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
  • Long distance with superior video quality: (Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910) ; Long-Reach mode up to 1080P @ 150 m)
  • Supports individual 2-channel stereo audio and USB 2.0 full speed ports

Features

  • Supports HDBaseT™ 2.0 technology
    • Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a cable / 2L-2910 Cat 6 cable
    • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
    • Status detection and LED indication for HDBaseT™ signal transmission on remote unit
  • EDID Buffer for smooth power-up and the highest quality display
  • HDMI (3D, Deep Color, 1080P, 4K); HDCP 2.2 Compatible
  • Long distance with superior video quality
    • HDBaseT™ Standard mode up to 4K @ 100 m (Cat 6 / 6a / 2L-2910)
    • HDBaseT™ Long-Reach mode up to 1080P @ 150 m
  • Long Reach mode switch – switches between HDBaseT™ Standard and Long Reach modes in a snap
  • Supports individual 2-channel stereo audio and USB 2.0 full speed ports
  • Supports PC wakeup function via single pushbutton
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

Diagram

Specifications

FunctionCE820LCE820R
Connectors
Console PortsN/A1 x HDMI Female (Black)
3 x USB Type A Female
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
1 x RJ-45 Female (Black)
KVM Ports1 x HDMI Female (Black)
1 x USB Type B Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
1 x RJ-45 Female (Black)
N/A
RS-2321 x DB-9 Female (Black)1 x DB-9 Male (Black)
Power1 x DC Jack with locking1 x DC Jack with locking
Unit To Unit1 x RJ-45 Female (Black)1 x RJ-45 Female (Black)
LEDs
Power1 (Green)1 (Green)
Link1 (Orange)1 (Orange)
Video OutputN/A1 (Orange)
Switches
Long Reach Mode Switch1 x Slide Switch1 x Slide Switch
Firmware Upgrade1 x Slide Switch1 x Slide Switch
Pushbuttons
Wakeup buttonN/A1 x Push button
VideoUp to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
1080P@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Up to 4K@90m (Cat 5e) / 100m (Cat 6/6a/ATEN 2L-2910 Cat6)
1080P@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Power ConsumptionDC5V:2.87W:13BTUDC5V:5.37W:40BTU
Environmental
Operating Temperature0–40°C0–40°C
Storage Temperature-20–60°C-20–60°C
Humidity0–80% RH, Non-condensing0–80% RH, Non-condensing
Physical Properties
HousingMetalMetal
Weight0.63 kg ( 1.39 lb )0.65 kg ( 1.43 lb )
Dimensions (L x W x H)18.20 x 12.19 x 2.87 cm
(7.17 x 4.8 x 1.13 in.)
18.20 x 12.19 x 2.87 cm
(7.17 x 4.8 x 1.13 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
