Aten CL1000M Slideaway LCD Console

€ 795,83 € 657,71
Levertijd: 3-5 werkdagen
17inch LCD Console (USB - PS/2 VGA)

Omschrijving

The CL1000 is a KVM console module that serves as the front-end for standard KVM switches. The CL1000 features an integrated 17 LCD panel, full keyboard, and touchpad in a 1U, rack-mountable, Slideaway™ housing. Users who already have a switch can take advantage of the space saving and efficiency benefits of the CL1000 LCD KVM console without the unnecessary expense of having to purchase a KVM switch.
Voor meer informatie.

Eigenschappen

Integrated KVM console with 17 LCD monitor - in a Slideaway™ housing
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Slideaway™ housing is less than 1U - with top and bottom clearance for smooth operation in a 1U high system rack
Compatible with most PS/2 KVM Switches
Internal power built in
Adjustable depth to fit within a rack
High video resolution:
-Up to 1280 x 1024 @75Hz
-Supports DDC, DDC2, DDC2B
DDC emulation - VGA settings of every connected computer are automatically adjusted for optimal output to the LCD monitor
Keyboard Language support: English(US); English(UK); German; German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean; Swedish; Italian; Russian; Hungarian
Improved design - single person installation (optional)
Multiplatform support: Windows 2000/XP/Vista, Linux and FreeBSD

Rack Mounting KitDepth
Long (Optional)68cm - 100cm
Short (Standard)42cm - 72cm
Easy Installation
Rack Mounting Kit
Depth
Long (Optional)68cm - 105cm
Short (Optional)42cm - 70cm
More information about "Easy Rack Mounting"...

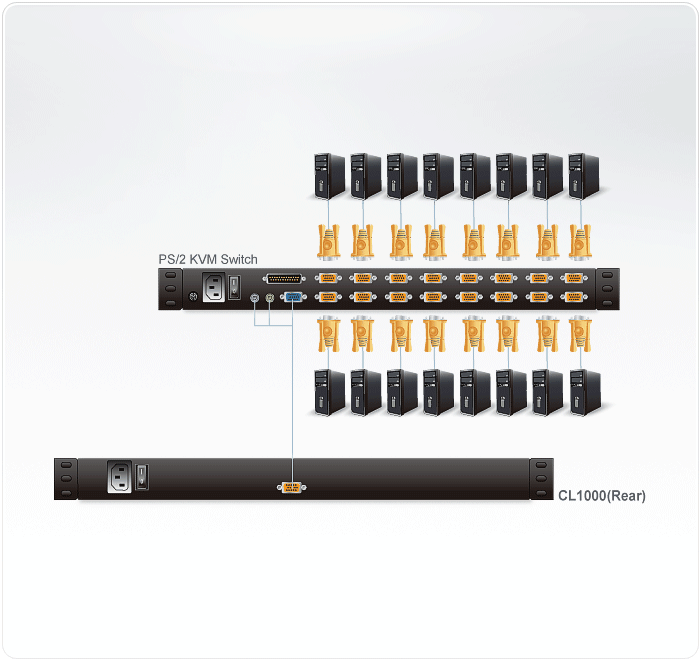

Diagram

inhoud

• 1x CL1000 with Standard Rack Mount Kit
• 1x 2L-5202P PS/2 KVM Cable Set
• 1x 1ADP-0005-005G Power Cord
• 1x User Instructions

Specifications


Connectors KVM Ports Keyboard/
Video/Mouse
1 x SPHD Female (Yellow)
Power 1 x 3-prong AC Socket
Switches LCD Adjustment 4 x Pushbuttons
Reset 1 x Semi-recessed Pushbutton
Power 1 x Rocker
LEDs Power 1 (Dark Green)
Num Lock 1 (Green)
Caps Lock 1 (Green)
Scroll Lock 1 (Green)
Emulation Keyboard / Mouse PS/2
Video 17 LCD 1280 x 1024; DDC2B
I/P Rating 100 - 240 VAC; 50/60 Hz; 1A
Power Consumption 17 LCD 120V/21W; 230V/24W
Environment Operating Temp. 0-40?C
Storage Temp. -20-60?C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal+Plastic
Weight 17 LCD 12.30kg
Dimensions
( D x W x H )
53.40 x 48.00 x 4.40 x cm (19/1U)
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
