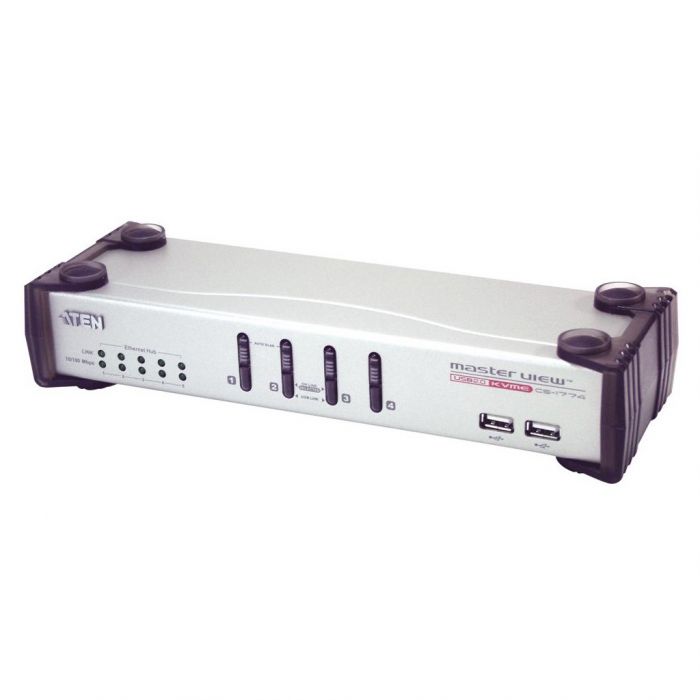

CS1774 is a multi-computer KVM Switch with built-in 3-in-1 (KVM Switch, USB 2.0 and Ethernet) function. It can simultaneously control 4 servers via a set of USB keyboard, mouse, and monitor. Moreover, the built-in USB and Ethernet Switch ports can rapidly access USB peripheral devices and share Internet resources at ease. Voor meer informatie.
Eigenschappen
USB 2.0 KVME™ Switch with Ethernet Hub/USB Hub Three/Five auto-sensing dual speed ports (Ethernet/Fast Ethernet) plugand-and-play enabled; hub complies with IEEE802.3/IEEE802.3u Standard 2 port USB 2.0 Hub built in Multiplatform support: compatible with all operation platforms PC(Windows,Linux and most others), Mac and Sun With speaker and microphone support Bi-directional switching and flexible interoperability;switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus Buzzer On/Off via hotkey Keyboard and mouse emulation for error free booting Computer selection via front panel pushbuttons and hotkeys superior video quality - up to 2048 x 1536; DDC2B OS Compatibility:Windows 98, Windows ME, Windows 2000, Windows 2003, Windows XP, Windows Vista, LINUX, Mac OS 8.6/9/10 and SUN Solaris 8/9. SUN/Mac keyboard support and emulation* *1.PC keyboard combinations emulate SUN/Mac keyboards. *2.SUN/Mac keyboards only work with their own computers.

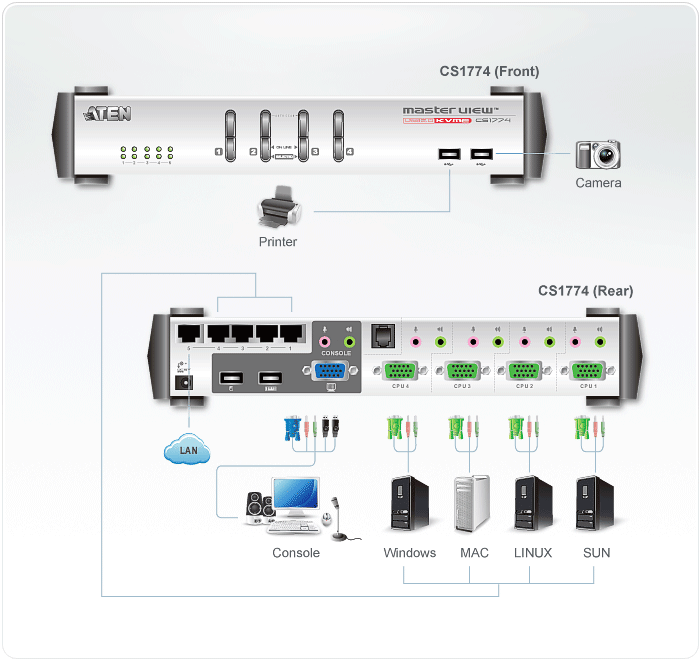

Diagram
inhoud
• 1x 4 ports KVME™ Switch
• 4x USB KVM Cables
• 1x USB-to-PS/2 Converter
• 1x Firmware Upgrade Cable
• 1x Power Adapter
• 1x User Instructions
Specificaties
Computer Connections
4
Port Selection
Hotkeys, Pushbutton
USB Port/ Audio Port Selection
Hotkey
Connectors
Console Ports
Keyboard
1 x USB Type A Female (White)
Video
1 x HDB-15 Female (Blue)
Mouse
1 x USB Type A Female (White)
Speaker
1 x Mini Stereo Jack Female (Green)
Microphone
1 x Mini Stereo Jack Female (Pink)
KVM Ports
Keyboard
4 x SPHD-15 Female (Green)
Video
Mouse
Speaker
4 x Mini Stereo Jack Female (Green)
Microphone
4 x Mini Stereo Jack Female (Pink)
Ethernet Hub
5 x RJ-45 Female (Black)
USB Hub
2 x USB Type A Female (White)
F/W Upgrade
1 x RJ-11 Female (Black)
Power
1 x DC Jack(Black)
Switches
Port
4 x Pushbutton
LEDs
On Line / Selected
4 (Orange)
USB Link
4 (Green)
10/100 Mbps
5 (Green)
LINK(Ethernet)
5 (Green)
Emulation
Keyboard/Mouse
USB
Video
2048 x 1536; DDC2B
Scan Interval
1~99 seconds
Power Consumption
DC 5.3V, 5W
Environment
Operating Temp.
0°~50°C
Storage Temp.
-20°~60°C
Humidity
0~80% RH, Non-condensing
Physical Properties
Housing
Metal
Weight
0.92 kg
Dimensions ( L x W x H )
27.00 x 8.70 x 5.50 cm
* The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders.
