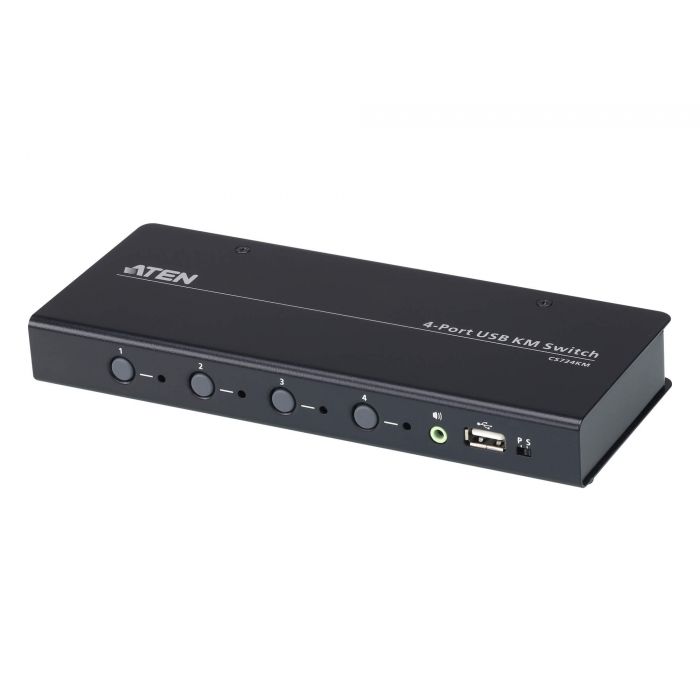

ATEN CS724KM 4-Port USB KVM Switch

€ 545,70 € 450,99
4-port USB Boundless KM Switch (Cables included)

Omschrijving

  • Single USB keyboard and mouse control up to 4 computers
  • Daisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse
  • Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next.
  • Boundless Switching Configuration Utility* – an intuitive GUI tool that enables users to customize monitor layouts

Features

  • Single USB keyboard and mouse control up to 4 computers
  • Daisy-chain two CS724KM units to control up to 8 computers with a single keyboard and mouse
  • Boundless Switching – simply move the mouse cursor across the display border and onto the corresponding display of the target computer to switch the keyboard/mouse operations from one computer to the next.
  • Boundless Switching Configuration Utility* – an intuitive GUI tool that enables users to customize monitor layouts
  • Port selection via front panel pushbutton, keyboard hotkey, mouse cursor, mouse wheel**, and RS-232 commands
  • Independently switch keyboard/ mouse, USB peripheral, and audio focus via hotkeys
  • Supports RS-232 serial commands
  • Supports Windows operating systems
  • No software required
  • Bus-powered – no external power adapter required***

    Note:
    * The utility is installed on a separate computer.
    ** Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
    *** The USB bus-powered design allows the switch to get power from the connected computers. It requires connection to at least two computers to get sufficient power supply.

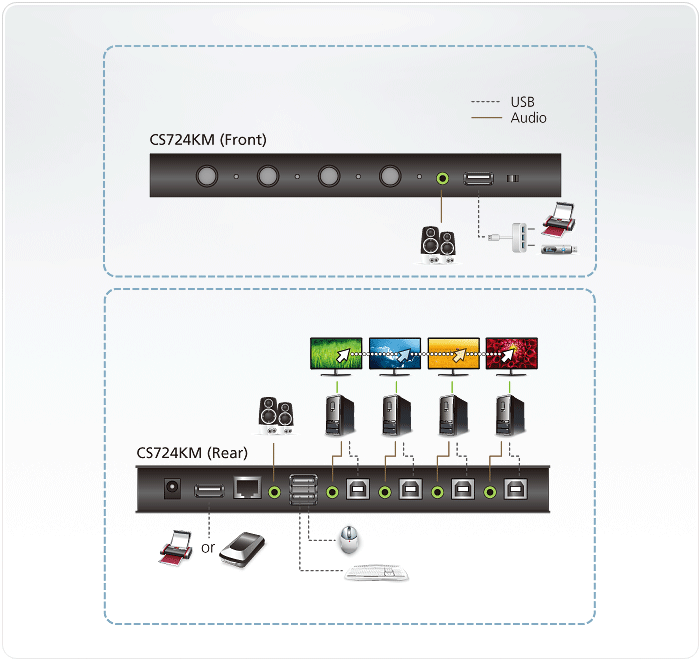

Diagram

inhoud

  • 1x 4-port USB Boundless KM Switch
  • 4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
  • 4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
  • 1x User Instructions

Specifications

Computer Connections4
Port SelectionHotkey, Pushbutton, Mouse Wheel, Mouse Cursor, RS-232 Commands
Connectors
Console Ports2 x USB Type A Female
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
1 x RJ-45
KVM (Computer) Ports4 x USB Type B Female
4 x 3.5mm Audio Jack Female (Green)
Power1 x DC Jack
USB Hub2 x USB 2.0 Type A Female (1 x front panel; 1 x rear panel)
Switches
Port Selection4 x Pushbutton
Station Selection1 x Slide Switch
LEDs
Selected4 (Green)
Emulation
Keyboard / MouseUSB
Scan Interval1-99 seconds (default: 5 sec.)
Power ConsumptionDC5V:1.69W:33BTU
Environmental
Operating Temperature0-50°C
Storage Temperature-20-60°C
Humidity0-80% RH, Non-condensing
Physical Properties
HousingMetal, Plastic
Weight0.50 kg ( 1.1 lb )
Dimensions (L x W x H)20.00 x 8.06 x 2.50 cm
(7.87 x 3.17 x 0.98 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
