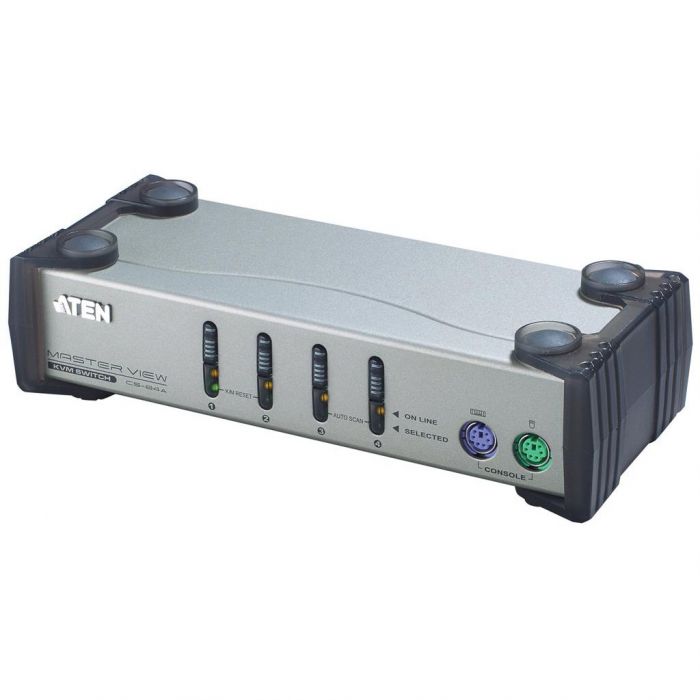

Aten CS84A 4-Port PS/2 KVM Switch

Name: Aten CS84A 4-Port PS/2 KVM Switch
Brand: Aten
SKU: CS84A
Price: 89.95 EUR
Availability: InStock

Schrijf de eerste review over dit product

€ 89,95 € 74,34

Niet meer leverbaar

4-Port PS/2 KVM Switch. (incl. bijhorende kabels)

Ga naar het einde van de afbeeldingen-gallerij

Ga naar het begin van de afbeeldingen-gallerij

Omschrijving

CS82A is a KVM switch with built-in PS/2 on each of the front and rear panels. It can control 4 servers via a single console and allows users to switch between computers via the buttons on the front panel of the switch or the hotkey configuration on the keyboard. It is the simplest and most convenient solution for multi-computer management. The sturdy, durable and small enclosure design is its important feature. Voor meer informatie.

Eigenschappen

One PS/2 console controls 4 computers.
Computer selection via front panel pushbuttons and hotkeys.
Superior video quality- up to 1920 x 1440; DDC2B.
Supports Microsoft IntelliMouse, Logitech MouseMan, FirstMouse and IBM Scrollpoint Mouse.
Compact, Sturdy, Durable Metal Housing.
Keyboard and mouse emulation for error free booting.
Auto Scan function to monitor computer operation.
Non-powered.
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac and FreeBSD

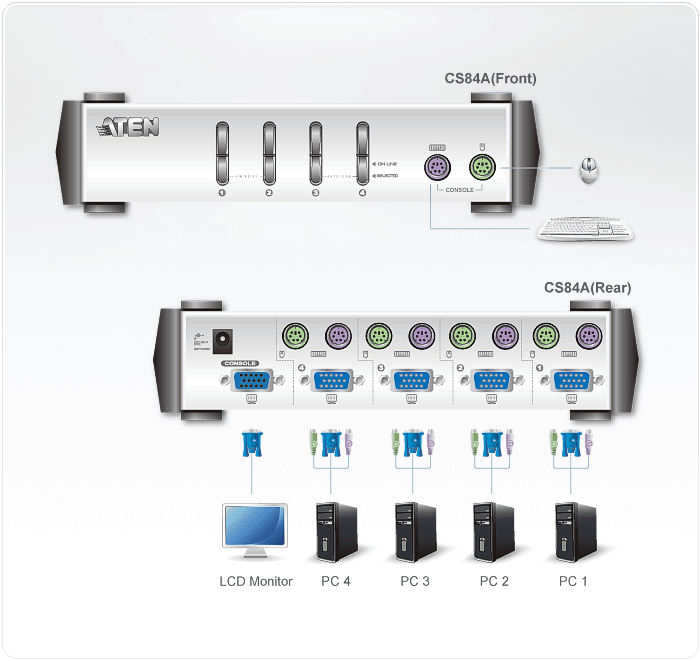

Diagram

inhoud

• 1x KVM Switch
• 2x 2L-5001P/C PS/2 KVM Cables
• 2x 2L-5002P/C PS/2 KVM Cables
• 1x User Instructions

Specificaties

Computer Connections			4
Port Selection			Hotkey, Pushbutton
Connectors	Console Ports	Keyboard	1 x 6-pin Mini-DIN Female (Purple)
		Video	1 x HDB-15 Female (Blue)
		Mouse	1 x 6-pin Mini-DIN Female (Green)
	KVM Ports	Keyboard	4 x 6-pin Mini-DIN Female (Purple)
		Video	4 x HDB-15 Male (Blue)
		Mouse	4 x 6-pin Mini-DIN Female (Green)
	Power		1 x DC Jack (Black)
Switches	Port		4 x Pushbutton
LEDs	On Line		4 (Orange)
	Selected		4 (Green)
Emulation	Keyboard/ Mouse		PS/2
Video			1920 x 1440; DDC2B
Scan Interval			5 Seconds
Power Consumption			DC9V, 1.17W
Environment	Operating Temp.		0°~50°C
	Storage Temp.		-20°~60°C
	Humidity		0~80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		0.64 kg
	Dimensions ( L x W x H )		21.00 x 8.70 x 5.50 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
