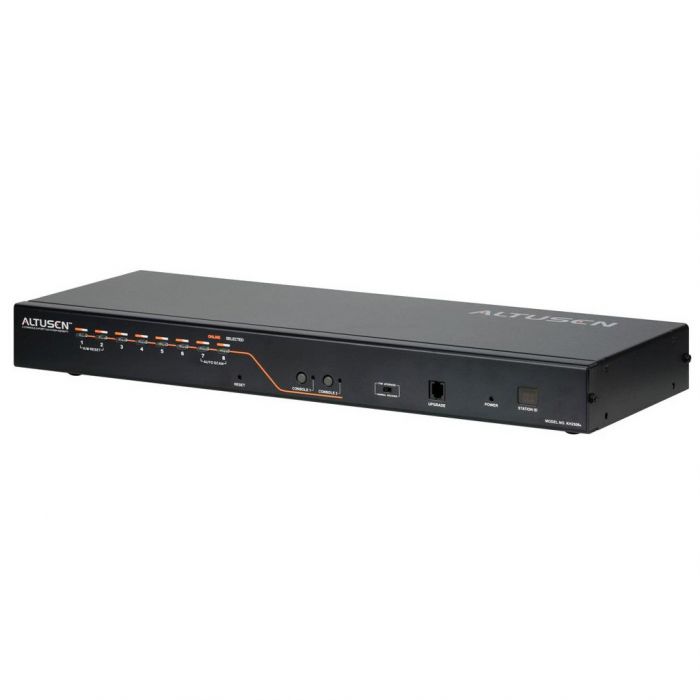

De KH2508A KVM-switch is een bedieningseenheid waarmee IT-beheerders toegang krijgen tot en het beheer krijgen van meerdere computers vanaf één PS/2- of USB KVM-console (één bus). Operators die werken aan maximaal twee consoles, kunnen onafhankelijk en simultaan de bediening overnemen van maximaal 8 computers. Door het in serie schakelen van maximaal 15 extra switches, kunnen maar liefst 128 computers bediend worden vanaf de originele KVM-consoles.
| Computer Connections |
Direct | 8 | |
| Max. | 256 (via Daisy Chain) | ||
| Port Selection | OSD (On Screen Display); Hotkeys, Pushbutton Switches |
||
| Connectors | Console Ports | Keyboard | 2 x 6-pin Mini-DIN Female (Purple); 2 x USB Type A Female |
| Video | 2 x HDB-15 Female (Blue) | ||
| Mouse | 2 x 6-pin Mini-DIN Female (Green); 2 x USB Type A Female (White) |
||
| KVM Ports | 8 x RJ-45 Female | ||
| Daisy Chain |
In | 1 x DB-25 Female (Black) | |
| Out | 1 x DB-25 Male (Black) | ||
| F/W Upgrade | 1 x RJ-11 Female | ||
| Power | 1 x 3-prong AC socket | ||
| Switches | Port Selection | 8 x Pushbutton | |
| Console Selection | 2 x Pushbutton | ||
| Reset | 1 x Semi-recessed Pushbutton | ||
| F/W Upgrade | 1 x Slide | ||
| Power | 1 x Rocker | ||
| LEDs | Port | On Line | 8 (Green) |
| Selected | 8 (Orange) | ||
| Console | 2 (Orange) | ||
| Power | 1 (Blue) | ||
| Station ID | 1 x 7-segment LED display (Orange) | ||
| Emulation | Keyboard | PS/2; USB | |
| Mouse | PS/2; USB | ||
| Scan Interval | 1-255 Seconds | ||
| Video | 1600 x 1200 @ 60 Hz (40m); 1280 x 1024 @ 75 Hz (50m) |
||
| I/P Rating | 100–240 VAC; 50/60 Hz; 1A | ||
| Power Consumption | 120V/7.2W; 230V/8.6W | ||
| Environment | Operating Temp. | 0-50°C | |
| Storage Temp. | -20-60°C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Metal | |
| Weight | 2.81 kg | ||
| Dimensions ( L x W x H ) |
43.72 x 16.36 x 4.40 cm | ||
