Aten KN2116VA 16-Port KVM Over the NET

Schrijf de eerste review over dit product
€ 6.710,74 € 5.546,07
Levertijd: 3-5 werkdagen
16-Port 3-Bus CAT5e/6 KVM Over IP Switch, with Audio & Virtual Media Support, 1 local / 2 remote user access

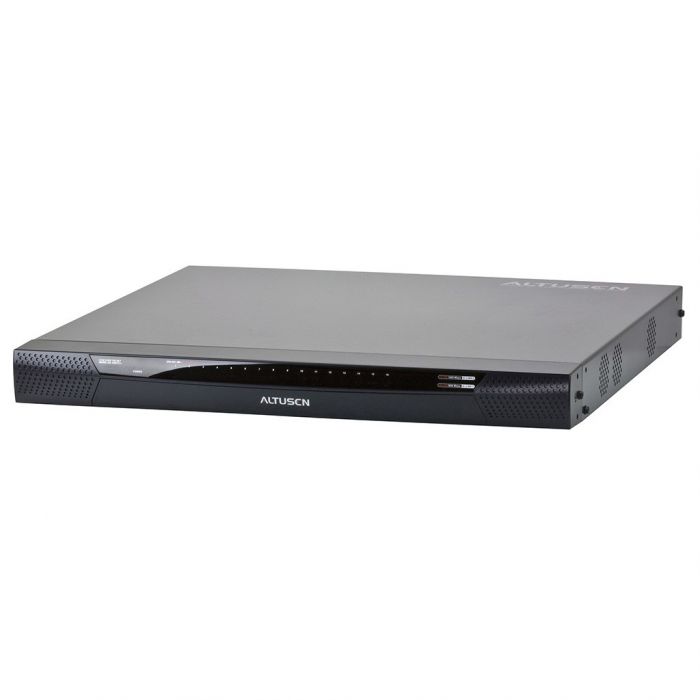

main product photo

Omschrijving

Aten’s new generation of KVM over IP switches - KN series allows local and remote operators the ability to monitor and access their entire data center over the network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association– KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches’ user interface.

KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception.

The Virtual Media function lets you map to storage media on USB, hard disk and DVD/CD drives located on remote servers – allowing administrators to conduct file transfers, install applications, run O.S. updates, or perform diagnostics across a network with ease.

Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode™, Mouse DynaSync™, and Adapter ID.

With dual on-board NICs and dual power supplies, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers. The switch´s design features Green IT solutions that include four temperature sensors to regulate up to six fans – run at optimum speeds – throttling down and speeding up depending on room temperature, reducing data center operational costs through a more efficient way of maintaining energy.

With Aten KVM over IP switches IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – ensuring the highest availability of data center services possible.

Voor meer informatie.

Eigenschappen

  • New KN Series Exclusive
  • High-Grade Security – supports FIPS 140-2 level 1 security standards that use an embedded FIPS 140-2 certified OpenSSL cryptographic module (Certificate #1747, #2398, #2473)
  • Extreme virtual media speed – 2 x faster virtual media transmission speed
  • Advanced FPGA graphics processor – with an Full HD resolution of 1920 x 1200
  • Simultaneously share one local console and two independent connections to the attached servers
  • Hardware
  • High port density – RJ-45 connectors and Cat 5e/6 cable for up to16 ports in a 1U housing
  • Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy Console operation
  • Two separate buses for remote KVM over IP access
  • Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
  • Blade server support
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Local console provides USB keyboard and mouse support
  • Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
  • Audio enabled
  • Dual Power Supply
  • High video resolution – up to 1920 x 1200 @ 60Hz (50m) with 24-bit color depth at the switch’s local console and on remote session displays
  • Monitor and control up to 16 computers on a single level, or control up to 256 computers in a cascade*
    * Cascade-compatible KVM Switches include the following: CS9134, CS9138, CS88A, KH1508, KH1516, KH1508A, and KH1516A
  • Management
  • Up to 64 user accounts
  • Up to 32 concurrent logins
  • Green IT-Fan speed varies according to temperature
  • Event logging and Windows-based Log Server support
  • Critical system event notification via SMTP email; SNMP trap and Syslog support
  • Customizable events notification
  • Firmware upgradeable
  • Out-of-Band Access-Modem dial-in/dial out/dial back support
  • Adapter ID Function: Stores port information allowing administrators to relocate the servers to different ports, without having to re-configure the adapters and switches
  • Port Share Mode allows multiple users to gain access to a server simultaneously
  • Integration with ATEN CC2000 Management Software
  • Integration with ATEN CCVSR Video Session Recording Software*
  • Power Association enables the switch’s KVM ports to be associated with ATEN PDUs power outlets for remote power management
  • IPv6 capable
    *Supports recording computer operations accessed via remote sessions.
  • Easy-to-Use Interface
  • ATEN Exclusive Panel Array Mode™ simultaneously monitoring for both local console operators and remote access users
  • Local Console, browser-based, and AP GUIs offer a unified Multilanguage interface to minimize the user training time and increase productivity
  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multi-browser support: Internet Explorer, Chrome, Firefox, Safari, Opera, Mozilla, Netscape
  • Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package required
  • Users can launch multiple virtual remote desktop sessions to control multiple servers during the same login
  • Full-screen or sizable and scalable Virtual Remote Desktop
  • Keyboard/Mouse Broadcast – keyboard and mouse inputs can be duplicated on all the attached servers
  • Video syncing with the local console – local console monitor’s EDID information stored on the KVM Adapter Cables for display resolution optimization
  • Advanced Security
  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse, video, and virtual media data encryption
  • Support for IP/MAC Filter
  • Configurable user and group permissions for server access and control
  • Automated CSR creation utility and third party CA certificate authentication
  • Virtual Media
  • Virtual media enables file applications, OS patching, software installation and diagnostic testing
  • Works with USB enabled servers in operating system and BIOS level
  • Support DVD/CD drives, USB mass storage devices, PC hard drives and ISO images
  • Virtual Remote Desktop
  • Video quality can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full screen video display or scalable video display
  • Message Board for communication among remote users
  • Mouse DynaSync-automatically synchronizes the local and remote mouse movements
  • Exit Macros support
  • On-screen keyboard with multilanguage support
  • BIOS-level access for trouble shooting

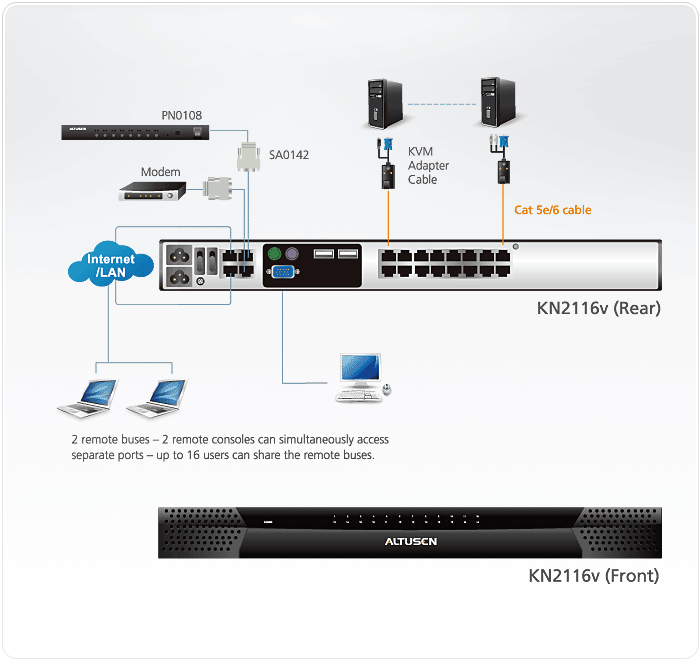

Diagram

inhoud

1x KN2116v KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x Power Cords
2x Utility Power Cords
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions

Specifications

Computer Connections Direct 16
Max 256 (via Cascade)
Console Connections Local 1
Remote 2
Port Selection Pushbutton, GUI, Hotkey
Connectors Console Port Keyboard 1 x 6-pin Mini-DIN Female (Purple)
1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Blue)
Mouse 1 x 6-pin Mini-DIN Female (Green)
1 x USB Type A Female (White)
KVM Ports 16 x RJ-45 Female (Black)
Power 2 x 3-prong AC socket
LAN 2 x RJ-45 Female (Black)
PON 1 x RJ-45 Female (Black)
Modem 1 x RJ-45 Female (Black)
USB 3 x USB Type A Female (White)
Audio 2 x Audio Jack Female
Switches Reset 1 x Semi-recessed Pushbutton
Power 2 x Rocker
Port Selection 2 x Pushbutton
LEDs On Line 16 (Green)
Selected 16 (Red)
Power 1 (Blue)
Link
10 / 100 / 1000 Mbps		 2 (Red / Red + Green / Green)
Emulation Keyboard/Mouse PS/2 / USB (PC, Mac, Sun) / Serial
Video 1600x1200 @ 60Hz
Scan Interval 1-255 Seconds
I/P Rating 100-240VAC ; 50-60Hz; 1.0A
Power consumption Single Power 115V / 32.6W ; 230V / 33.4W
Dual Power 115V / 38W ; 230V / 38.7W
Environment Operating Temp. 0 - 50?C
Storage Temp. -20 - 60?C
Humidity 0 - 80% RH, Non-condensing
Physical Properties Housing Metal
Weight 5.91 kg
Dimensions
( L x W x H )		 43.36 x 41.35 x 4.40 cm (19"/1U)
    * The specification and pictures are subject to change without notice.
    * All trademarks and logos are the properties of their respective holders.
