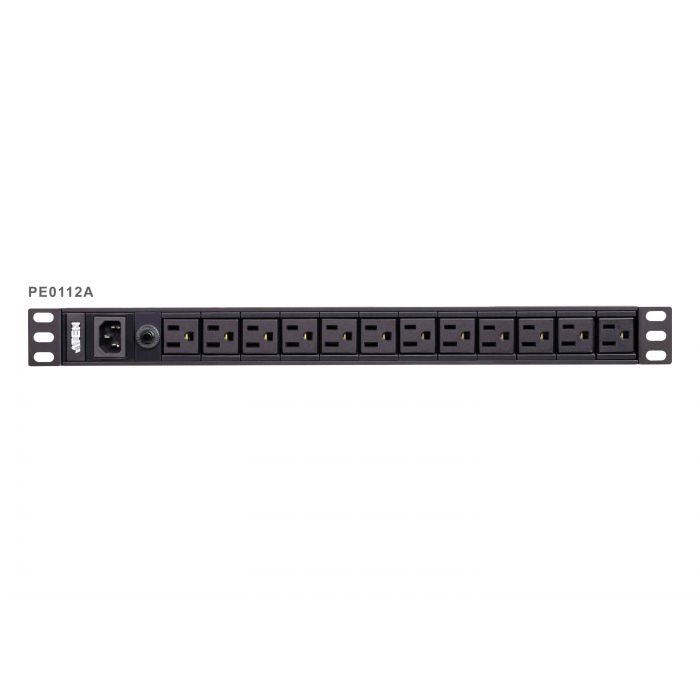

De standaard PDU van de PE0112-serie bevat 12 wisselstroomuitgangen en is beschikbaar in IEC- of NEMA-socketconfiguraties. De Standaard PDU van de Pe0112-serie biedt een ruimtebesparend 1U-design waardoor het verticaal kan worden gemonteerd op de buitenkant van een rack, wat resulteert in
| Function | PE0112A | PE0112G |
| Electrical | ||
| Nominal Input Voltage | 100-120 VAC | 100-240 VAC |
| Maximum Input Current | 15A(Max) (UL de-rated 12A Max) | 10A(Max) |
| Input Frequency | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA 5-15P | IEC-320 C14 |
| Input Power | 1800VA(MAX)； 1440VA(UL de-rated) | 2400 VA(Max) |
| Outlet Type | (12) NEMA 5-15R | (12) IEC 320 C13 |
| Nominal Output Voltage | 120 VAC | 240V |
| Maximum Output Current (Outlet) | 15A(Max) (UL de-rated 12A Max) | 10A(Max) |
| Maximum Output Current (Bank) | 15A(Max) (UL de-rated 12A Max) | 10A(Max) |
| Maximum Output Current (Total) | 15A(Max) (UL de-rated 12A Max) | 10A(Max) |
| OPD(Overcurrent Protection Device) | Yes | Yes |
| Physical Properties | ||
| Dimensions (L x W x H) | 48.80 x 4.40 x 4.50 cm (19.21 x 1.73 x 1.77 in.) | 48.80 x 4.40 x 4.50 cm (19.21 x 1.73 x 1.77 in.) |
| Weight | 0.62 kg ( 1.37 lb ) | 0.62 kg ( 1.37 lb ) |
| Power Cord Length | 10ft(14#) | 10ft(3×1.0mm2) |
| Environmental | ||
| Temperature (Operating / Storage) | 0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. | 0 – 40℃ / -20 – 60℃ *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. |
| Elevation (Operating / Storage) | 3000m | 3000m |
| Compliance | ||
| EMC Verification | FCC Class A | CE Class A |
| Safety Verification | TBD | CE,LVD |
