Aten PE1216G 16-Port 0U Power Distribution Unit

Name: Aten PE1216G 16-Port 0U Power Distribution Unit
Brand: Aten
SKU: PE1216G
Price: 142.33 EUR
Availability: InStock

Schrijf de eerste review over dit product

€ 142,33 € 117,63

Direct leverbaar

16-Port 0U Power Distribution Unit (16 x C13) (IP-ready)

Ga naar het einde van de afbeeldingen-gallerij

Ga naar het begin van de afbeeldingen-gallerij

Omschrijving

• PE1216A: 100~120V; North America, Mexico, Japan, Taiwan
• PE1216B: 200~240V; North America, Mexico, Japan, Taiwan
• PE1216G: International

The PE1216 Energy PDU contains 16 AC outlets and is available in IEC or NEMA socket configurations. The PE1216 Energy PDU features a space-saving 0U design that allows it to be mounted vertically on the outside of a rack, resulting in a more efficient use of space in the server room, while providing 16 AC outlets.
The PE1216 Energy PDU can be integrated into an installation with the EC1000 Energy Box*, allowing you to monitor the real-time current and environmental conditions of the Energy PDU from the front panel of the EC1000 at the rack, or via Web GUI remotely – making your server room efficiently green with ease.

* ATEN EC1000 Energy Box and energy management software – eco Sensors are available at www.aten.eu.

Voor meer informatie.

Eigenschappen

Space saving 0U rack mount design IEC or NEMA outlet models
Real-time PDU current monitoring

** When used in conjunction with the EC1000 Energy Box
pe1216 power outlets

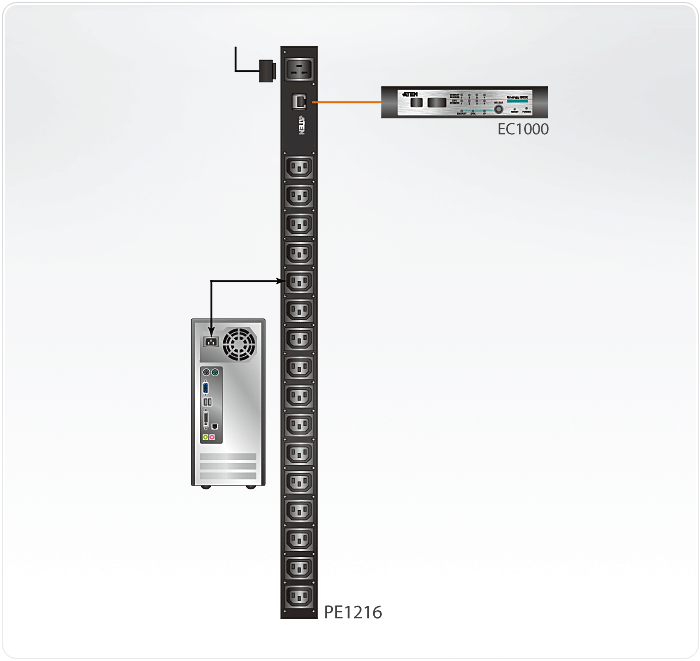

Diagram

inhoud

1x PE1216 Energy PDU
1x Power Cord
(310 cm - Seperate cable with power connectors C19 and C20)
1x Mounting Kit
1x User Instructions

Specificaties

Function		PE1216A	PE1216B	PE1216G
Power Outlets	Direct	16 x NEMA 5-15R	16 x IEC C13	16 x IEC C13
Connectors	Inlet	1 x IEC60320 C20
	Energy Sensor Port	1 x RJ-45 Female
Nominal Input Power		100-120V~, 50/60Hz, 20A(Max), 16A( UL derated)	100-240V~, 50/60Hz, 20A(Max), 16A( UL derated)	100-240V~, 50/60Hz,16A(Max)
Nominal Output Power		100-120V~, 50/60Hz Per Outlet 15A (Max), 12A( UL de-rated) Total : 20A(Max), 16A( UL de-rated)	100-240V~,50/60Hz Per outlet 15A (Max), 12A( UL de-rated) Total : 20A(Max), 16A( UL de-rated)	100-240V~,50/60Hz Per Outlet 10A (Max) Total : 16A(Max)
Environment	Operating Temp.	0 - 50°C
	Storage Temp.	-20 - 60°C
	Humidity	0-80% RH Non-condensing
Physical Properties	Housing	Metal
	Weight	1.31 kg	1.31 kg	1.23 kg
	Dimensions ( L x W x H )	73.00 x 4.40 x 4.40 cm		68.00 x 4.40 x 4.40 cm

* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
