• 1U 8-uitgangen eco PDU
• Uitgangsniveaumeting

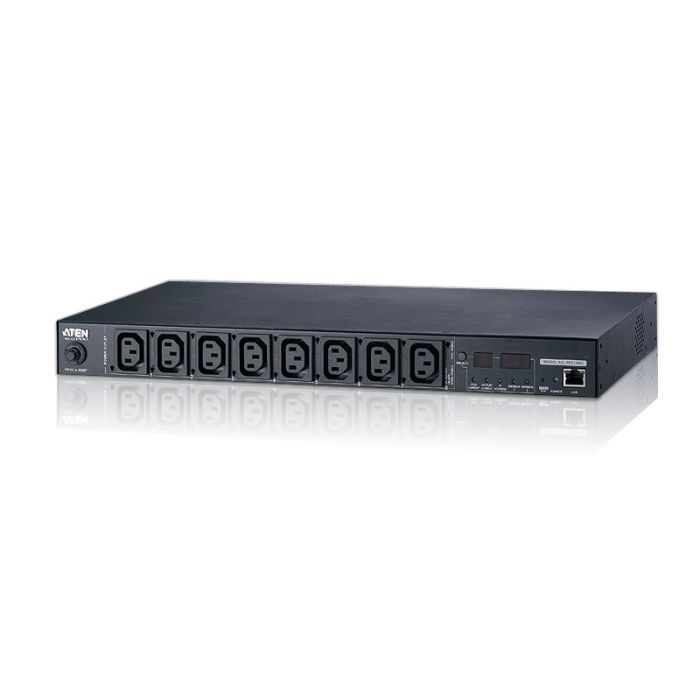

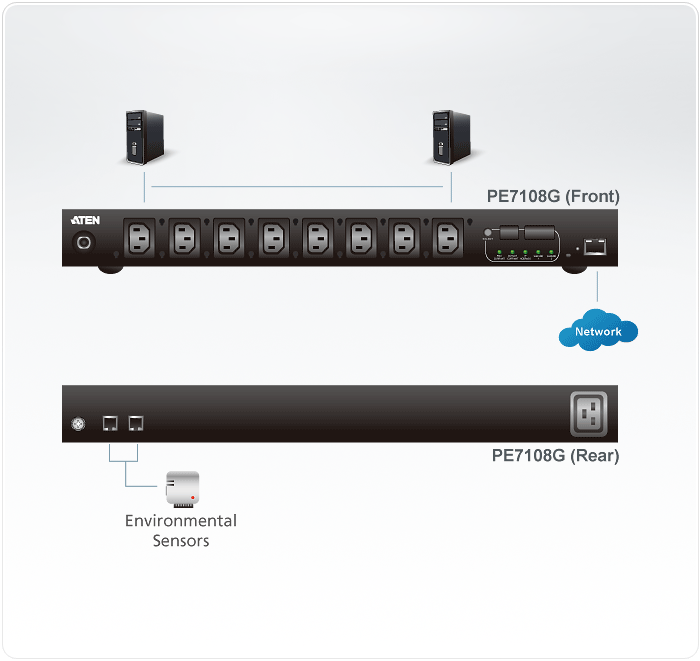

ATEN heeft een nieuwe generatie stroomverdelingseenheden (PDU’s) met groene energie ontwikkeld om de efficiëntie van het stroomgebruik van het gegevenscentrum doeltreffend te verhogen. De PE7108 eco PDU’s zijn intelligente PDU’s die 8 wisselstroomuitgangen hebben en zijn beschikbaar in verschillende IEC- of NEMA-socketconfiguraties. Ze bieden veilig, gecentraliseerd, intelligent voedingsbeheer van IT-apparatuur van gegevenscentra (servers, opslagsystemen, KVM-switches, netwerkapparaten, seriële gegevensapparaten, enz.), evenals de mogelijkheid om de gezondheidsomgeving van het centrum te bewaken via sensoren*.
| Function | PE7108A | PE7108B | PE7108G |
| Electrical | |||
| Nominal Input Voltage | 100 – 120 VAC | 100 – 240 VAC | 100 – 240 VAC |
| Maximum Input Current | 15A Max; 12A(UL de-rated) | 15A Max; 12A(UL de-rated) | 10A Max |
| Input Frequency | 50-60 Hz | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA 5-15P | NEMA 6-15P | IEC 60320 C14 |
| Input Power | 1800 VA(Max); 1440 VA(UL de-rated) | 3120 VA(Max); 2496 VA(UL de-rated) | 2300 VA(Max) |
| Outlet Type | Total: 8 x NEMA 5-15R | Total: 8 x IEC320 C13 | Total: 8 x IEC320 C13 |
| Nominal Output Voltage | 100 – 120 VAC | 100 – 240 VAC | 100 – 240 VAC |
| Maximum Output Current (Outlet) | NEMA 5-15R: 15A(Max); 12A(UL de-rated) | C13 : 15A(Max); 12A(UL de-rated) | C13 : 10A(Max) |
| Maximum Output Current (Bank) | 15A(Max); 12A(UL de-rated) | 15A(Max); 12A(UL de-rated) | 10A(Max) |
| Maximum Output Current (Total) | 15A(Max); 12A(UL de-rated) | 15A(Max); 12A(UL de-rated) | 10A(Max) |
| Breakers | 1 x 15A Non-Fuse Breaker | 1 x 15A Non-Fuse Breaker | 1 x 15A Non-Fuse Breaker |
| Metering | Outlet level Current, Voltage, VA , PF and KWh Monitoring | Outlet level Current, Voltage, VA , PF and KWh Monitoring | Outlet level Current, Voltage, VA , PF and KWh Monitoring |
| Outlet Switching | None | None | None |
| Environment Sensor Ports | 2 | 2 | 2 |
| Metering Accuracy | Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% | Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% | Voltage Range: 100VAC ~ 250VAC +/-1% Power Range: 100W ~ Maximum Capacity +/- 2% Current Range: 0.1A~1A +/- 0.1A, 1A~20A +/-1% |
| Physical Properties | |||
| Power Cord Length | 3 m | 3 m | 3 m |
| Dimensions (L x W x H) | 43.24 x 22.04 x 4.40 cm (17.02 x 8.68 x 1.73 in.) | 43.24 x 22.04 x 4.40 cm (17.02 x 8.68 x 1.73 in.) | 43.24 x 22.04 x 4.40 cm (17.02 x 8.68 x 1.73 in.) |
| Weight | 2.72 kg ( 5.99 lb ) | 2.72 kg ( 5.99 lb ) | 2.72 kg ( 5.99 lb ) |
| Environmental | |||
| Temperature (Operating / Storage) | 0 – 50°C / -20 – 60°C | 0 – 50°C / -20 – 60°C | 0 – 50°C / -20 – 60°C |
| Humidity (Operating & Storage) | 0 – 80% RH, Non-Condensing | 0 – 80% RH, Non-Condensing | 0 – 80% RH, Non-Condensing |
| Compliance | |||
| EMC Verification | FCC, Others by Request | FCC, Others by Request | CE, Others by Request |
| Safety Verification | TUV-CB, cTUVus, Others by Request | TUV-CB, cTUVus, Others by Request | TUV-CB, CE-LVD, Others by Request |
