ATEN UH7230 Thunderbolt 3 Multiport Dock with Porwer Chargin

€ 729,96 € 603,27
Thunderbolt™ 3 Multiport Dock with Power Charging

Omschrijving

  • Supports both Thunderbolt 3 (40Gbps) and USB 3.1 Gen2 (10Gbps) protocol through a single Thunderbolt 3 cable
  • Connect up to 8 devices to a laptop via a single Thunderbolt 3 cable / can daisy-chain 5 additional Thunderbolt devices
  • 85W Universal Power Delivery for charging a Thunderbolt 3 laptop or Macbook pro ; supports 20V/4.25A, 15V/3A, 9V/3A and 5V/3A power specifiation for the output power
  • Supports 5K resolution on a single Thunderbolt 3 display or dual 4K resolution on one DisplayPort display and one USB-C / Thunderbolt 3 display

Features

  • Supports both Thunderbolt 3 (40Gbps) and USB 3.1 Gen2 (10Gbps) protocol through a single Thunderbolt 3 cable
  • Connect up to 8 devices to a laptop via a single Thunderbolt 3 cable / can daisy-chain 5 additional Thunderbolt devices
  • Supports 5K resolution on a single Thunderbolt 3 display or dual 4K resolution on one DisplayPort display and one USB-C / Thunderbolt 3 display
  • 85W Universal Power Delivery for charging a Thunderbolt 3 laptop or Macbook pro ; supports 20V/4.25A, 15V/3A, 9V/3A and 5V/3A power specifiation for the output power
  • Compatible with legacy Thunderbolt devices via adapter
  • Gigabit Ethernet port
  • Audio line-in and line-out
  • OS Support: Windows 10 32/64 bit, and OS X Sierra 10.12 later

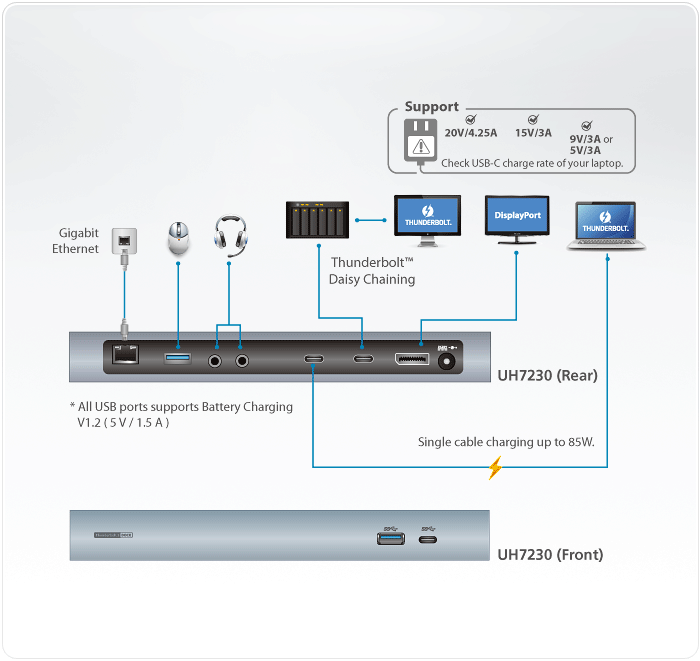

Diagram

inhoud

  • 1x UH7230 Thunderbolt™ 3 Multiport Dock
  • 1x Thunderbolt 3 USB-C Cable
  • 1x AC Power Adapter with LIN2-418K-E12G Cable
  • 1x User Instructions

Specifications

Computer Connections1 Thunderbolt Computer
Device Connections5 Max. (via Thunderbolt Daisy-chaining)
Connectors
Computer1 x Thunderbolt 3 (USB-C) Female (Black)
Device1 x Thunderbolt 3 (USB-C) Female (Black)
2 x USB3.1 Gen1 Type-A Female (Blue)
1 x USB3.1 Gen1 Type-C Female (Black, data only)
LAN Ports1 x Gigabit Ethernet Female (Black)
Audio Inputs1 x 3.5mm Stereo Input Female (Black)
Audio Outputs1 x 3.5mm Stereo Output Female (Black)
Power Jack1
Video Output1x DisplayPort Female
1x Thunderbolt 3 (USB-C) Female
Video ResolutionSingle View:
Thunderbolt 3 (USB-C) Monitor - 5K@60
USB-C Monitor - 4096*2160@60
DisplayPort Monitor - 4096*2160@60

Dual View:
Thunderbolt 3 (USB-C) Monitor or USB-C Monitor - 4096*2160@60
DisplayPort Monitor- 4096*2160@60
Power ConsumptionDC20V , 170W
Package Contents1 x Thunderbolt 3 (USB-C) Cable
1 x Power Adapter w/ AC power cord
Environmental
Operating Temperature0–40°C
Storage Temperature-20–60°C
Humidity0–80% RH, Non-condensing
Physical Properties
HousingAluminum
Weight0.37 kg ( 0.83 lb )
Dimensions (L x W x H)22.20 x 8.20 x 2.60 cm
(8.74 x 3.23 x 1.02 in.)
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
