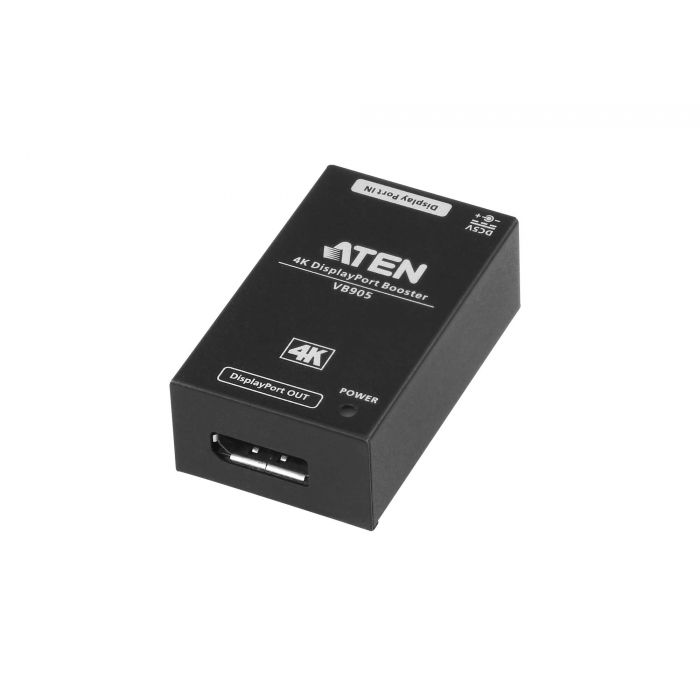

ATEN VB905 4K Display Port Booster

€ 113,26 € 93,60
4K DisplayPort Booster (True 4K@10m)

Omschrijving

  • Extends True 4K signal transmission up to 5 m
  • Compliant with DisplayPort 1.2a and HDCP 2.2
  • Supports HDR
  • Cascade 3 levels to extend True 4K signal up to 20 m

Features

  • Extends True 4K signal transmission up to 5 m
  • Compliant with DisplayPort 1.2a and HDCP 2.2
  • Superior video quality – up to True 4K resolutions of 4096 x 2160 @ 60 Hz (4:4:4)
  • Supports HDR
  • Cascade 3 levels to extend True 4K signal up to 20 m
  • A single unit can be powered from the source device
  • Plug-and-play
  • Rack mountable

    Note: Longer transmission distance is possible with lower data rates. If you want to remain high quality transmission, please use higher quality cable.

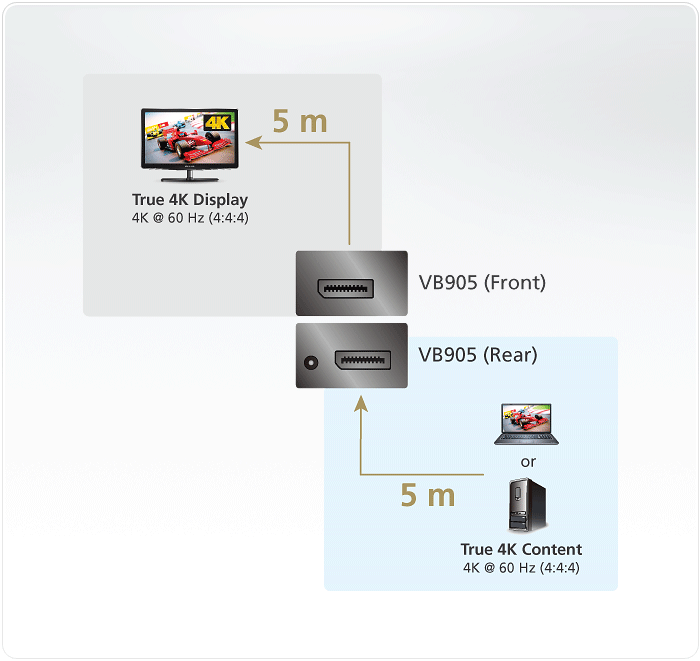

Diagram

inhoud

  • 1x VB905 4K DisplayPort Booster
  • 1x 0AD6-1705-26EG Power Adapter
  • 1x User Instructions

Specifications

Video Input
Interfaces1 x DisplayPort Female (20-pin)
Max. DistanceUp to 4Kx2K@60Hz (4:4:4) / 5m
1080p@60Hz / 5m
Video Output
Interfaces1 x DisplayPort Female (20-pin)
Max. DistanceUp to 4Kx2K@60Hz (4:4:4) / 5m
1080p@60Hz / 5m
Video
Max. Data Rate21.6 Gpbs (5.4 Gbps Per Lane)
ComplianceDP1.2a
HDCP 2.2
Max. Resolution4096 x 2160@60Hz (4:4:4)
Connectors
Power1 x DC Jack
Power ConsumptionDC5V:0.937W:4BTU
Environmental
Operating Temperature0 - 40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight0.05 kg ( 0.11 lb )
Dimensions (L x W x H)5.84 x 3.53 x 2.06 cm
(2.3 x 1.39 x 0.81 in.)
Carton Lot10 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
