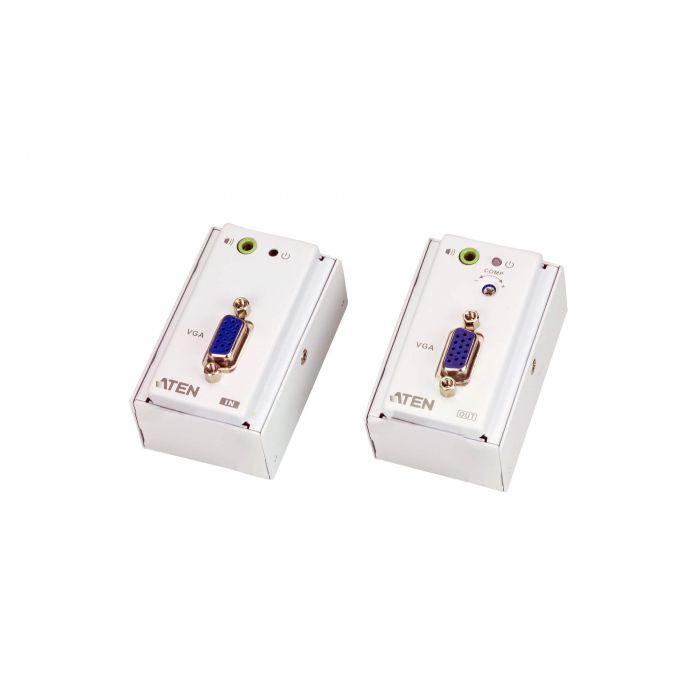

ATEN VE157 VGA/Audio Over Cat5 Extender With MK

€ 283,25 € 234,09
VGA/Audio Cat 5 Extender with MK Wall Plate (1280 x 1024 @150 m)

Omschrijving

  • Uses two Cat 5e/6 cables to connect the local and remote units- one to transmit video, and another for power*
  • Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
  • Extends the distance between VGA source and VGA display
  • Supports superior video quality up to 1920 x 1200 @60 Hz at a distance of 30 m; 1280 x 1024 @ 60 Hz at a distance of 150 m

Features

  • Uses two Cat 5e/6 cables to connect the local and remote units- one to transmit video, and another for power*
  • Remotely powered from either the Transmitter or Receiver side**
  • Extends the distance between VGA source and VGA display
  • Supports superior video quality up to 1920 x 1200 @60 Hz at a distance of 30 m; 1280 x 1024 @ 60 Hz at a distance of 150 m
  • Adjustable Gain Control – manually adjusts signal strength to compensate for distance
  • Supports wide screen formats
  • Supports hot- plugging
  • Supports stereo audio
  • Built- in 8KV/ 15 KV ESD protection
  • Plug- and- play with no software installation required
  • LED indication of power sources / connection status
    * A second Cat 5e/6 cable connection is required to remotely power on either the transmitter or receiver
    **A power adapter is provided with this package and can be used at either the transmitter or receiver side, which in turn remotely powers the other unit

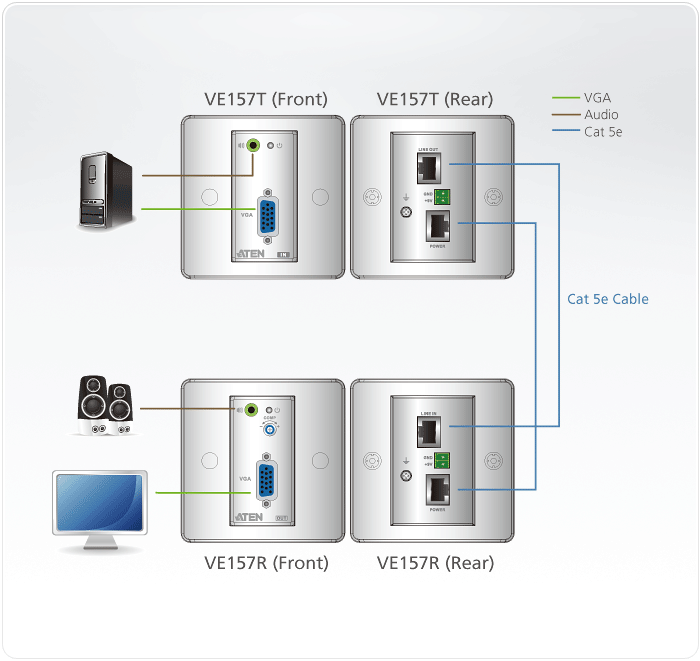

Diagram

inhoud

  • 1x VE157 VGA/Audio Cat 5 Transmitter with MK Wall Plate
  • 1x VE157 VGA/Audio Cat 5 Receiver with MK Wall Plate
  • 1x Terminal Block Connector
  • 1x 0AD6-1909-06EG Power Adapter
  • 2x MK type Wall Plate Covers
  • 8x Screw Covers
  • 1x Screw kit
  • 1x User Instructions

Specifications

FunctionVE157RVE157T
Video Input
InterfacesN/A1 x HDB-15 Female (Blue)
ImpedanceN/A100 ?
Video Output
Interfaces1 x HDB-15 Female (Blue)N/A
Impedance100 ?N/A
Video
Max. Resolutions / DistanceUp to 1920 x 1200@30m; 1280 x 1024@150mUp to 1920 x 1200@30m; 1280 x 1024@150m
Max. Bandwidth300 MHz300 MHz
Audio
InputN/A1 x Mini Stereo Jack Female (Green)
Output1 x Mini Stereo Jack Female (Green)N/A
Connectors
Power1 x Terminal Block (Green)1 x Terminal Block (Green)
Power Consumption9 VDC, 3.2W9 VDC, 3.2W
Environmental
Operating Temperature0 - 50°C0 - 50°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.18 kg ( 0.4 lb )0.18 kg ( 0.4 lb )
Dimensions (L x W x H)6.86 x 4.44 x 4.28 cm
(2.7 x 1.75 x 1.69 in.)
6.86 x 4.44 x 4.28 cm
(2.7 x 1.75 x 1.69 in.)
Faceplate Dimension (L x W x H)8.60 x 8.60 x 1.60 cm
(3.39 x 3.39 x 0.63 in.)
8.60 x 8.60 x 1.60 cm
(3.39 x 3.39 x 0.63 in.)
Carton Lot5 pcs5 pcs
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
