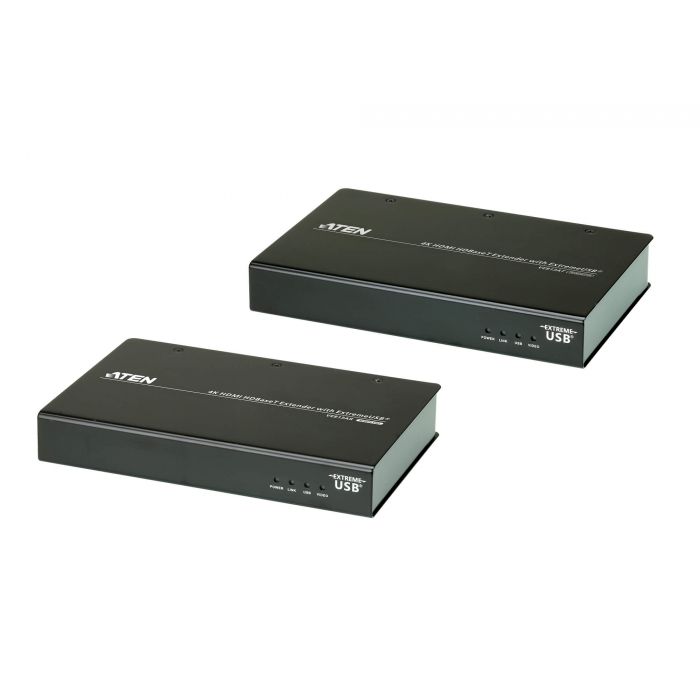

De VE813A HDMI HDBaseT-extender is een HDMI- en USB-extender die HDBaseT en gepatenteerde ExtremeUSB® technologie ondersteunt. De VE813A kan de afstand van HDMI- en USB 2.0-signalen uitbreiden tot 100 m vanaf de HDMI-bron met een enkele Ethernet-kabel. De VE813A ondersteunt HDMI-opties zoals 3D, Deep Color, 4K, CEC
| Function | VE813AR | VE813AT |
| Video Input | ||
| Interfaces | - | 1 x HDMI Type A Female (Black) |
| Impedance | - | 100 Ώ |
| Max. Distance | - | 1.8 m |
| Video Output | ||
| Interfaces | 1 x HDMI Type A Female (Black) | - |
| Impedance | 100 Ώ | - |
| Video | ||
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | Up to 340 MHz | Up to 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) ||||HDCP Compatible ||||Consumer Electronics Control (CEC) | HDMI (3D, Deep Color, 4K) ||||HDCP Compatible ||||Consumer Electronics Control (CEC) |
| Max. Resolutions / Distance | Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) | Up to 4K@70m (Cat 5e/6) / 100m (cat 6a); 1080p@100m *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | ||
| Input | - | 1 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | - |
| Power Consumption | DC5V:5.75WBTU | DC5V:5.75WBTU |
| Physical Properties | ||
| Weight | 0.62 kg ( 1.37 lb ) | 0.61 kg ( 1.34 lb ) |
| Dimensions (L x W x H) | 18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.) | 18.20 x 11.61 x 2.87 cm (7.17 x 4.57 x 1.13 in.) |
| Housing | Metal | Metal |
| Carton Lot | 5 pcs | 5 pcs |
| Control | ||
| USB Channel | 3 x USB Type A Female Transfer Rate: USB 2.0 (Up to 40 Mbps) | 1 x USB Type B Female Transfer Rate: USB 2.0 (Up to 40 Mbps) |
| Connectors | ||
| Power | 1 x DC Jack | 1 x DC Jack |
| Environmental | ||
| Operating Temperature | 0-40°C | 0-40°C |
| Storage Temperature | -20 - 60°C | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing | 0 - 80% RH, Non-Condensing |
