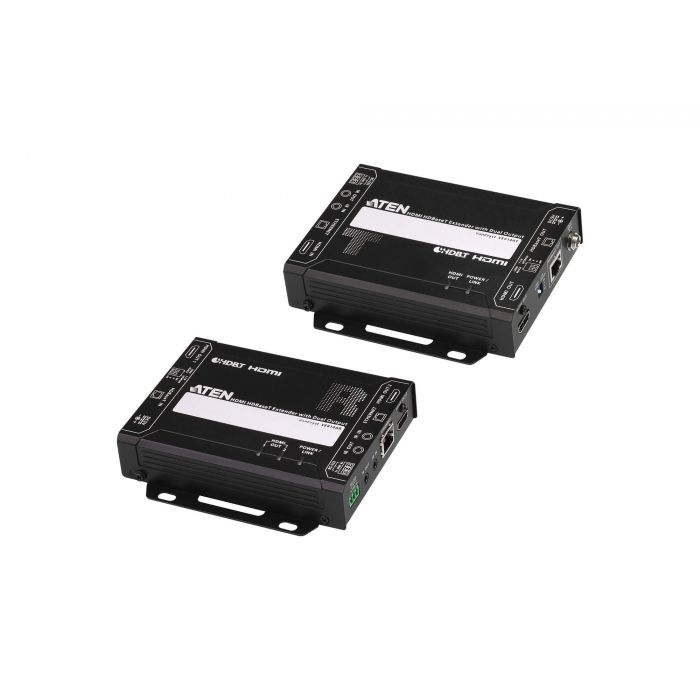

ATEN VE814A HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)

€ 610,08 € 504,20
Levertijd: 3-5 werkdagen
HDMI HDBaseT Extender with Dual Output (4K@100m) (HDBaseT Class A)

Omschrijving

ATEN VE814A is an HDBaseT Video Extender that is capable of sending HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable. Featuring dual synchronous outputs, the VE814A can transmit video signal to two remote displays and one at the local side. This HDCP 2.2-compliant extender meets the HDMI Specification, including 3D, Deep Color, the maximum data rate of (10.2 Gbps), and 4K video quality up to 100 m.

Features

  • Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D, Deep Color, 4K); HDCP 2.2 compatible
  • Superior video quality:
    • 4K up to 100 m
    • 1080p up to 150 m when in HDBaseT Long Reach Mode
  • Extends Ethernet communication using the Ethernet pass-through port
  • Supports two IR channels for simultaneous IR signal transmissions, ranged from 30 KHz to 56 KHz
  • ATEN EDID Technology -- when both transmitter and receiver sides are connected, VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
  • RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
  • Supports wide screen format
  • Built-in 8 kV/15 kV ESD protection
  • Plug-and-play
  • Rack-mountable

Diagram

inhoud

1x VE814AT Transmitter
1x VE814AR Receiver
1x IR Transmitter Cable
1x IR Receiver Cable
2x RS-232 Terminal Blocks
2x Power Adapters
1x User Instructions

Specifications

FunctionVE814ARVE814AT
Video Input
InterfacesN/A1 x HDMI Type A Female (Black)
ImpedanceN/A100 Ώ
Max. DistanceN/A1.8 m
Video Output
Interfaces2 x HDMI Type A Female (Black)1 x HDMI Type A Female (Black)
Impedance100 Ώ100 Ώ
Video
Max. Data Rate10.2Gbps (3.4Gbps per lane)10.2Gbps (3.4Gbps per lane)
Max. Pixel Clock340 MHz340 MHz
ComplianceHDMI (3D, Deep Color, 4K)
||||HDCP Compatible
||||Consumer Electronics Control (CEC)
HDMI (3D, Deep Color, 4K)
||||HDCP Compatible
||||Consumer Electronics Control (CEC)
Max. Resolutions / DistanceUp to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@100m (Cat 5e/6/6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
InputN/A1 x HDMI Type A Female (Black)
Output2 x HDMI Type A Female (Black)1 x HDMI Type A Female (Black)
Connectors
Unit To Unit1 x RJ-45 Female1 x RJ-45 Female
Power1 x DC Jack (Black) with locking1 x DC Jack (Black) with locking
Control
RS-232Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
Connector: 1 x Terminal Block, 3 pole
Baud Rate: 19200, Data Bits:8,
Stop Bits:1, no parity and flow control
IR2 x Mini Stereo Jack Female (Black)2 x Mini Stereo Jack Female (Black)
Ethernet1 x RJ-45 Female1 x RJ-45 Female
Switches
Long Reach Mode Switch1 x Slide Switch - ON/OFF1 x Slide Switch - ON/OFF
Firmware Upgrade1 x Slide Switch - ON/OFF1 x Slide Switch - ON/OFF
Power ConsumptionDC5V:5.09W:24DC5V:5.09W:24BTU
Environmental
Operating Temperature0 - 40°C0 - 40°C
Storage Temperature-20 - 60°C-20 - 60°C
Humidity0 - 80% RH, Non-Condensing0 - 80% RH, Non-Condensing
Physical Properties
HousingMetalMetal
Weight0.47 kg ( 1.04 lb )0.45 kg ( 0.99 lb )
Dimensions (L x W x H) with bracket14.02 x 12.30 x 3.00 cm
(5.52 x 4.84 x 1.18 in.)
14.02 x 12.30 x 3.00 cm
(5.52 x 4.84 x 1.18 in.)
Dimensions (L x W x H) without bracket13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
13.60 x 10.10 x 2.90 cm
(5.35 x 3.98 x 1.14 in.)
