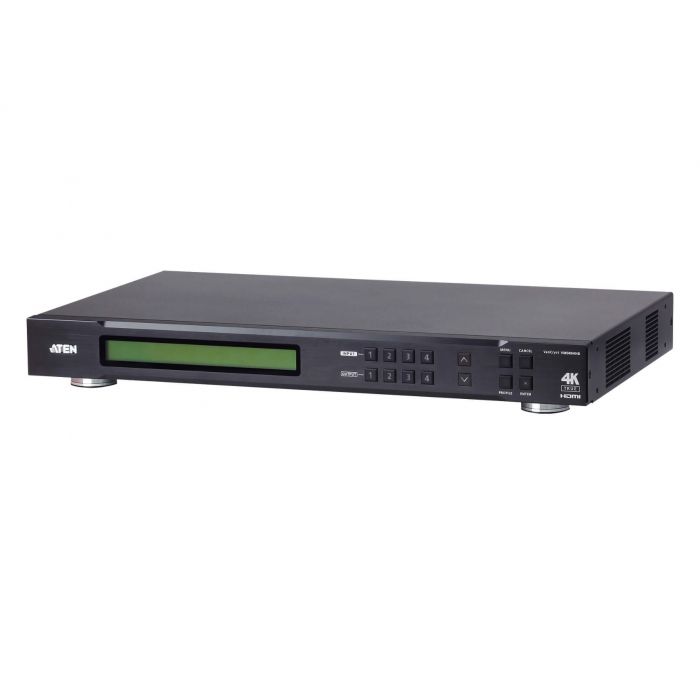

ATEN VM0404HB 4X4 True 4K HDMI Martrix Switch

€ 782,12 € 646,38
4 x 4 True 4K HDMI Matrix Switch

Omschrijving

  • Connects any of 4 HDMI sources to any of 4 HDMI displays
  • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
  • Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
  • HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
"

Features

  • Connects any of 4 HDMI sources to any of 4 HDMI displays
  • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
  • Multiple Control Methods – system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
  • EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
  • Signaling rates up to 6 Gbits for flawless true 4K output
  • Supports Dolby True HD and DTS HD Master audio
  • HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
  • Supports Consumer Electronics Control (CEC)
  • ESD protection for HDMI
  • Supports ATEN’s LockPro™ HDMI cable lock for secure HDMI cable connections
  • Firmware upgradeable
  • Rack mountable (1U design)

Diagram

inhoud

  • 1x VM0404HB 4 x 4 True 4K HDMI Matrix Switch
  • 1x LIN2-418K-E12G Power Cord
  • 1x 2XRT-0106G IR Remote Control
  • 1x 2XRT-0003G IR Receiver
  • 1x Rack Mounting Kit
  • 1x User Instructions

Specifications

Video Input
Interfaces4 x HDMI Type A Female (Black)
Impedance100 ?
Max. Distance1.8 m
Video Output
Interfaces4 x HDMI Type A Female (Black)
Max. Distance3m / 4K@60Hz (4:4:4)
15m / 1920 x 1200
Impedance100 ?
Video
Max. Pixel Clock600 MHz
Max. ResolutionUp to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Data Rate18 Gbps( 6 Gbps Per Lane)
ComplianceHDMI (3D, 4K, Deep Color)
HDCP 2.2 Compatible
Consumer Electronics Control (CEC)
Control
RS-232Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR1 x Mini Stereo Jack Female (Black)
Ethernet1 x RJ-45 Female
EDID SettingsEDID Mode: Default / Port 1 / Remix / Customized
(EDID Wizard Support)
Environmental
Operating Temperature0-40°C
Humidity0 - 80% RH, Non-Condensing
Storage Temperature-20 - 60°C
Physical Properties
Weight2.47 kg ( 5.44 lb )
HousingMetal
Dimensions (L x W x H)43.72 x 15.28 x 4.40 cm
(17.21 x 6.02 x 1.73 in.)
Connectors
Power1 x 3-Prong AC Socket
Carton Lot1 pc
Power ConsumptionAC110: 17.8W:83BTU
AC220:17.6W:83BTU
Power
Maximum Input Power Rating100-240 VAC; 50-60 Hz; 1.0A
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
