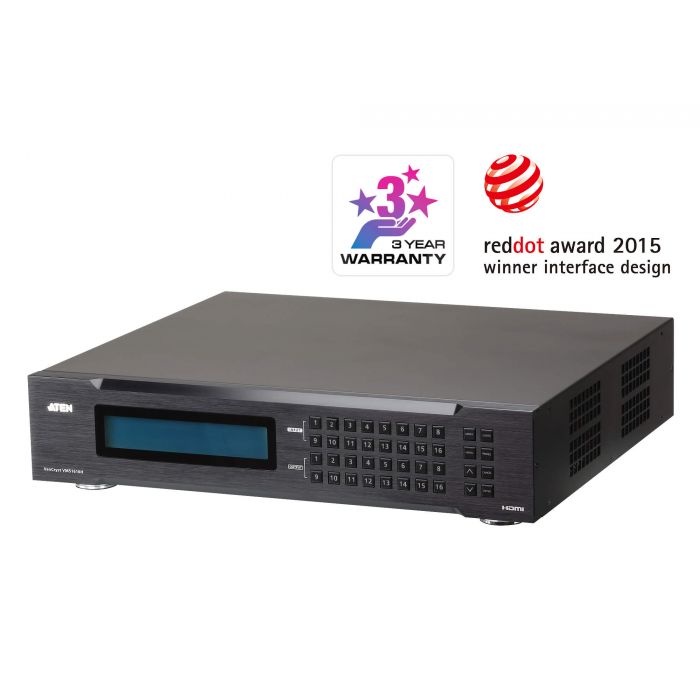

ATEN VM51616H 16x16 HDMI Matrix Switch + Videowall + Scaler and seamless switching

€ 16.552,80 € 13.680,00
16 x 16 HDMI Matrix Switch with Scaler

Omschrijving

  • Connects any of 16 HDMI sources to any of to 16 HDMI displays
  • Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
  • Video Wall –allows you to create custom video wall layouts via intuitive web GUI*
  • Local HDMI output –allows multiple preview of 16 video sources

Features

  • Connects any of 16 HDMI sources to any of to 16 HDMI displays
  • Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet
  • Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
  • Scaler –features a video scaling function to convert input resolutions to the optimum display resolutions
  • Video Wall –allows you to create custom video wall layouts via intuitive web GUI*
  • EDID Expert™ –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
  • FrameSync – prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
  • Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
  • HDMI (3D, Deep color); HDCP 1.4 compatible
  • Consumer Electronics Control (CEC) support
  • Local HDMI output –allows multiple preview of 16 video sources
  • Audio-enabled; HDMI audio can be extracted to stereo audio
  • Supports Dolby True HD and DTS HD Master audio
  • ESD protection for HDMI
  • Rack-mountable (2U design)

    *Note:
    1. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
    2. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

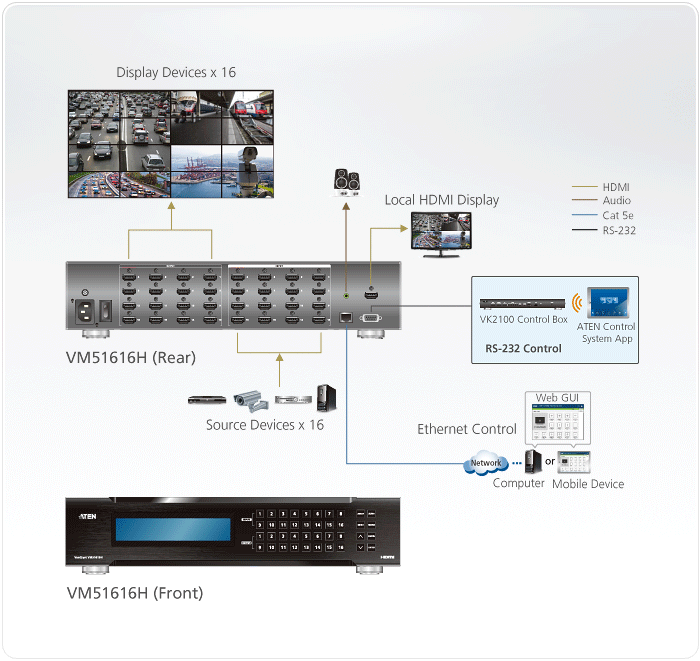

Diagram

inhoud

  • 1x VM51616H 16 x 16 HDMI Matrix Switch with Scaler
  • 1x LIN2-418K-E12G Power Cord
  • 1x Rack Mounting Kit
  • 1x User Instructions

Specifications

Video Input
Interfaces16 x HDMI Type A Female (Black)
Impedance100 ?
Max. Distanceup to 5m
Video Output
Interfaces16 x HDMI Type A Female (Black)
(Array Mode): 1 x HDMI Type A Female (Black)
Impedance100 ?
Max. Distanceup to 15 m
Video
Max. Data Rate6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock225 MHz
ComplianceHDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. ResolutionUp to 1080p
Audio
Output1 x Mini Stereo Jack Female (Green)
Control
RS-232Connector: 1 x DB-9 Female (Black)
Baud rate and protocol:
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
Ethernet1 x RJ-45 Female
EDID SettingsEDID Mode: Default / Port1 / Remix / Customized (EDID Wizard support)
Switches
Power1 x Rocker Switch
Connectors
Power1 x 3-Prong AC Socket
Power
Maximum Input Power Rating100-240 VAC; 50-60 Hz; 1.0A
Power Consumption120 VAC, 125W ; 230 VAC, 122W
Environmental
Operating Temperature0-40°C
Storage Temperature-20 - 60°C
Humidity0 - 80% RH, Non-Condensing
Physical Properties
HousingMetal
Weight7.86 kg ( 17.31 lb )
Dimensions (L x W x H)43.24 x 38.18 x 8.80 cm
(17.02 x 15.03 x 3.46 in.)
Carton Lot1 pc
NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
