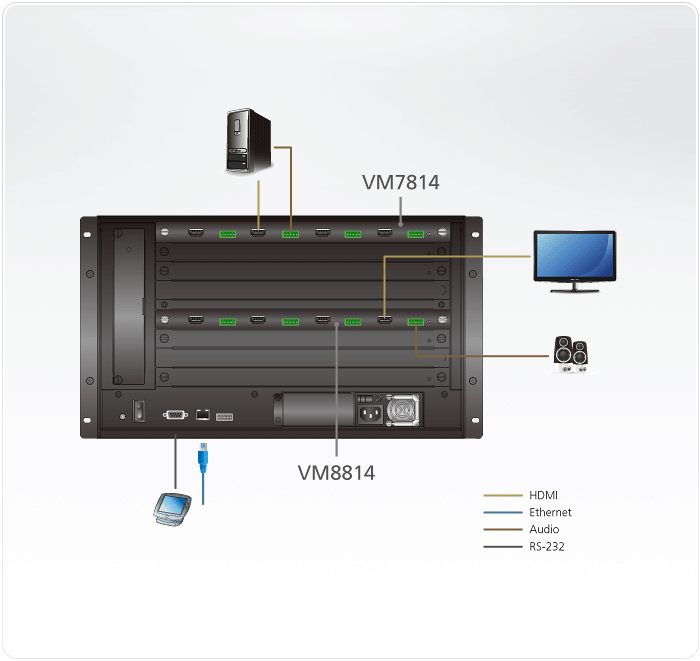

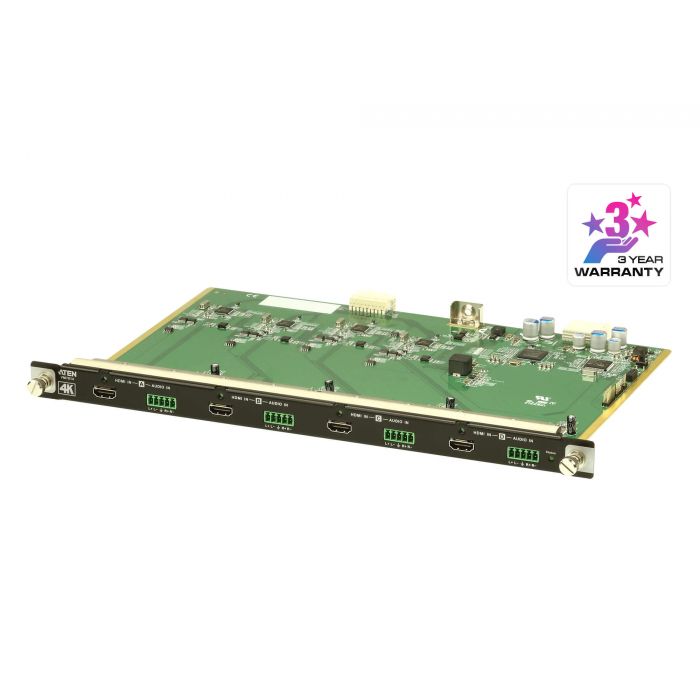

De VM7814 is een 4K HDMI ingangskaart die samenwerkt met een ATEN Modular Matrix Switch om een eenvoudige manier te bieden om 4 HDMI-bronnen te routeren naar 4 schermen. Naast de HDMI-interface die digitale A/V-signalen overbrengt, is de VM7814 voorzien van 4 stereo audio-ingangen waarmee het insluiten van stereo audio mogelijk is.
| Video Input | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | Up to 5m |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolution | 4096x2160/3840x2160@60Hz (4:2:0); 4096x2160/3840x2160@30Hz (4:4:4) |
| Audio | |
| Input | 4 x Captive Screw Connector, 5 Pole (Green) *Audio signal type: stereo, balanced/unbalanced. |
| Power Consumption | ¤l¥d:4.45W:21BTU |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.56 kg ( 1.23 lb ) |
| Dimensions (L x W x H) | 35.20 x 23.80 x 2.33 cm (13.86 x 9.37 x 0.92 in.) |
| Carton Lot | 2 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
