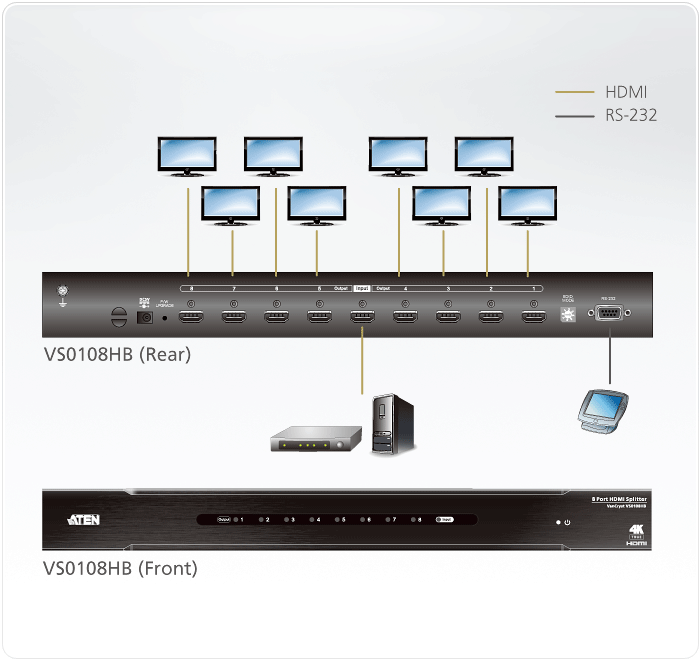

De ATEN VS0108HB is ontworpen voor toepassingen die het routeren van een HDMI-bron naar 8 compatibele weergaveapparaten vereisen. Hij ondersteunt Dolby True HD en DTS HD Master Audio, videosignalen tot True 4K, overdrachtsnelheden tot 18 Gbps, 3D en HD lossless audioformaten. Voorzien van ATEN EDID-technologie garandeert de VS0108HB een continue EDID-communicatie met aangesloten apparatuur en zorgt ervoor dat de HDMI-bronnen goed opstarten en de juisite video-uitvoer onderhouden.
| LEDs | |
| Input | 1 x LED (Green) |
| Video Output | 8 X LED (Green) |
| Power | 1 x LED (Green) |
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 3M Source to VS0108HB at 4K@60Hz (4:4:4) |
| Video Output | |
| Interfaces | 8 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 3M VS0108HB to Display at 4K@60Hz (4:4:4) |
| Video | |
| Max. Data Rate | 18 Gbps (6 Gbps Per Lane) |
| Max. Pixel Clock | 600 MHz |
| Compliance | HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4) |
| Control | |
| RS-232 | Connector: DB-9 Female (Black) x 1 Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| EDID Settings | EDID Slide Switch x 1 EDID Mode: Port 1 / Default / Auto / Switch |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5V:11.95W:56BTU |
| Environmental | |
| Operating Temperature | 0-40 °C |
| Storage Temperature | -20 - 60 °C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 2.18 kg ( 4.8 lb ) |
| Dimensions (L x W x H) | 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.) |
| Carton Lot | 3 pcs |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
