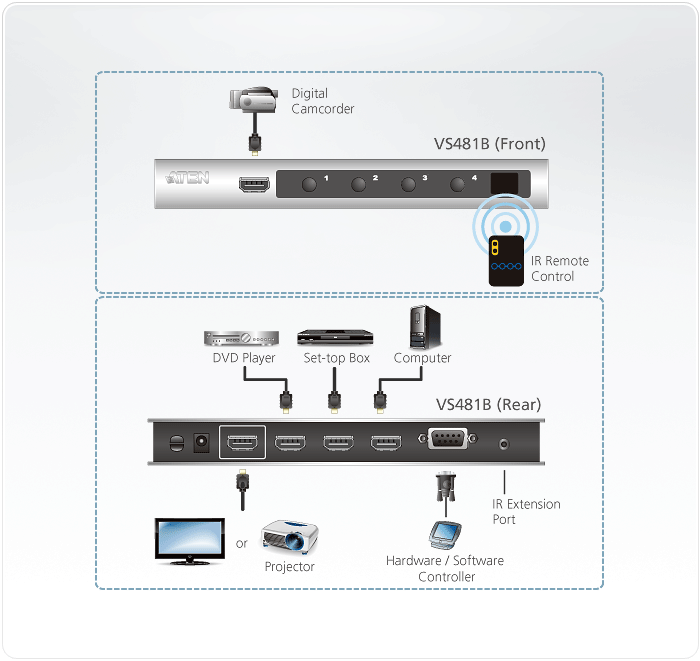

Met de VS481B 4-poorts HDMI-schakelaar kunt u snel 4 HDMI-bronnen aansluiten op uw HDM-beeldscherm en eenvoudig hiertussen schakelen via drukknoppen op het frontpaneel, RS-232 of IR-afstandsbediening. De LEDs op het frontpaneel geven overzichtelijk aan welke bron is geselecteerd voor weergave.
| Video Input | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 1.8 m |
| Video Output | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 ? |
| Max. Distance | 15 m |
| Video | |
| Max. Data Rate | 9 Gbps (3 Gbps Per Lane) |
| Max. Pixel Clock | 300 MHz |
| Compliance | HDMI (3D, Deep Color, 4K) HDCP 2.2 Compatible Consumer Electronics Control (CEC) |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Max. Distance | Up to 15 m |
| Audio | |
| Input | 4 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) |
| Control | |
| RS-232 | Connector: 1 x DB-9 Female (Black) Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| IR | 1 x Mini Stereo Jack Female (Black) |
| Connectors | |
| Power | Connector: 1 x DC Jack Consumption: 5 VDC, 5W |
| Power Consumption | DC5V:1.76W:8BTU |
| Environmental | |
| Operating Temperature | 0 - 50°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 0 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.48 kg ( 1.06 lb ) |
| Dimensions (L x W x H) | 20.00 x 8.25 x 2.50 cm (7.87 x 3.25 x 0.98 in.) |
| Carton Lot | 10 pcs |
